Merits Vision Super Heavy Duty Power Chair P327

About the Merits Vision Super Power Chair:

Our mid-wheel drive power wheelchair is engineered to provide outstanding maneuverability in tight, compact spaces. It features a patented articulation mechanism that allows the front wheels to climb steps and thresholds with ease. Equipped with dual in-line motors, this wheelchair enhances efficiency, range, and overall performance.

The full front and rear suspension design ensures a comfortable ride, while 12” knobby tires offer optimal weight distribution and superior traction. The swing-back joystick bracket comes standard, and the wheelchair boasts excellent stability on the footplate. As a heavy-duty Group 2 model, it offers maximum stability with a 4-seat post design and can be easily adapted to rehab seating.

Key Features:

• Mid-wheel drive design provides exceptional maneuverability in tight spaces.
• Articulation mechanism allows front wheels to climb steps and thresholds easily.

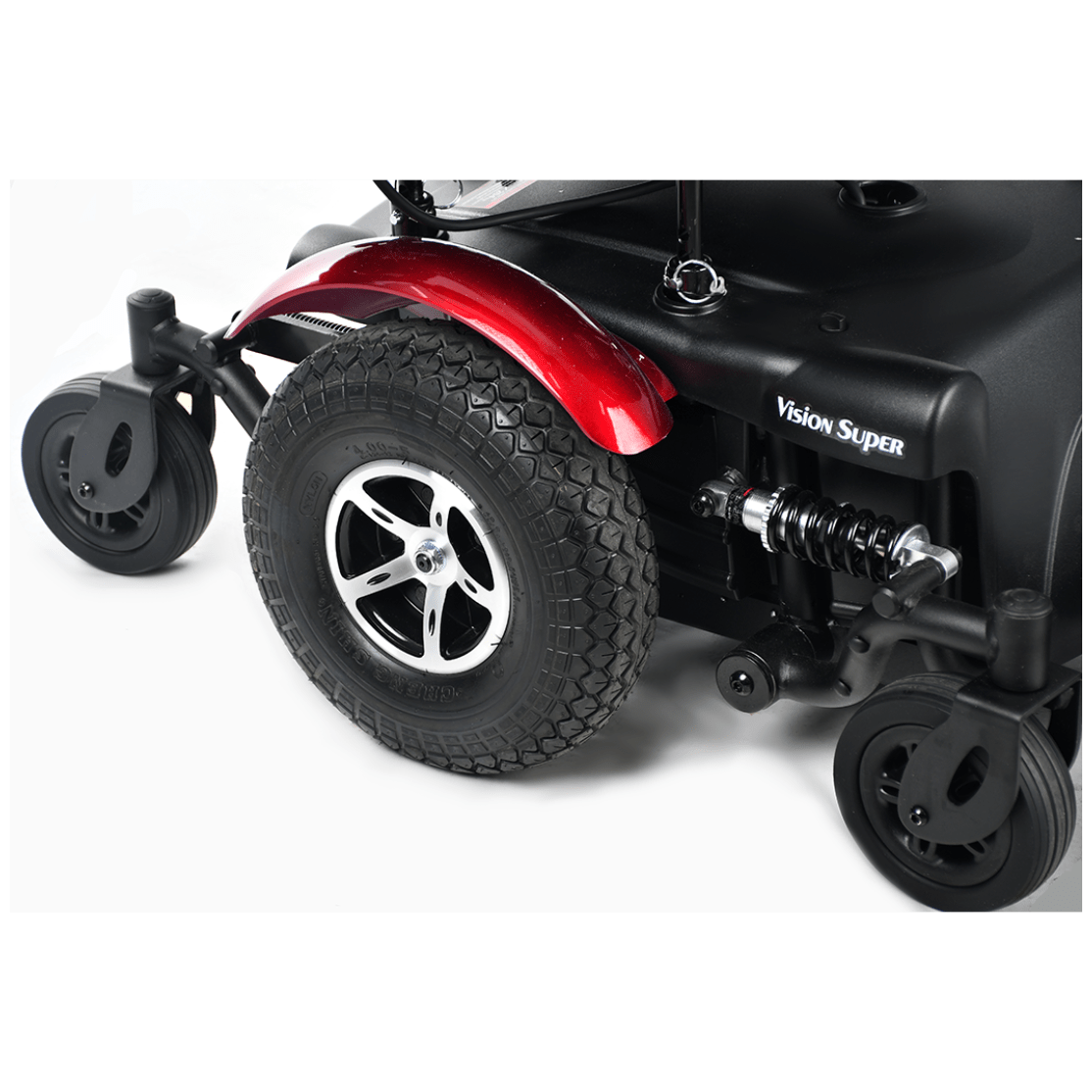

• Full front and rear suspension design offers a truly comfortable ride.
• 12” knobby tires provide superior traction.
• Swing-back joystick bracket is standard for ease of use.

• Supports a weight capacity of 450 lbs.
• Offers a driving range of up to 20 miles.
• Capable of reaching a maximum speed of 5 mph.
• Optional elevating seat lift upgrade.

Specifications:

Driving Range: 20 miles
Weight Capacity: 450 lb
Max Speed: 5 mph
Battery Type: 12V/22NF x 2 pcs
Motor: DC 24V, 200W (Rating) / 575W (Max)
Max Climbing Angle: 10°
Turning Radius: 21"
Ground Clearance: 2.2"
Controller: PG nVR2 50A / DY LiNX
Charger: 5A off-board
Total Weight: 231 lb
Front Wheel: F/R: 6” x 2” PU tire
Drive Wheel: 12" (4.00-5)
Rear Wheel: F/R: 6” x 2” PU tire
Seat Width: 20"
Seat Depth: 18"
Seat Height: 21" - 23"
Backrest Height: 20"
Footrest Extension Length: 17" - 19"
Overall Length: 35"
Overall Width: 27"
Overall Height: 50"

Warranty:

• Main Frame Warranty: Lifetime expectancy (5 years) against defects in material and workmanship.
• Parts Warranty: 1 year from the date of purchase for electronic controllers, harnesses, chargers, and motors.
• Exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.
• Labor and Freight Charges: Not included in the warranty.
• Warranty Void If: Improper installation or repair, owner’s neglect, accident, or misuse. Parts altered or serviced by unauthorized agencies.
