About the Vision Sport Wheelchair

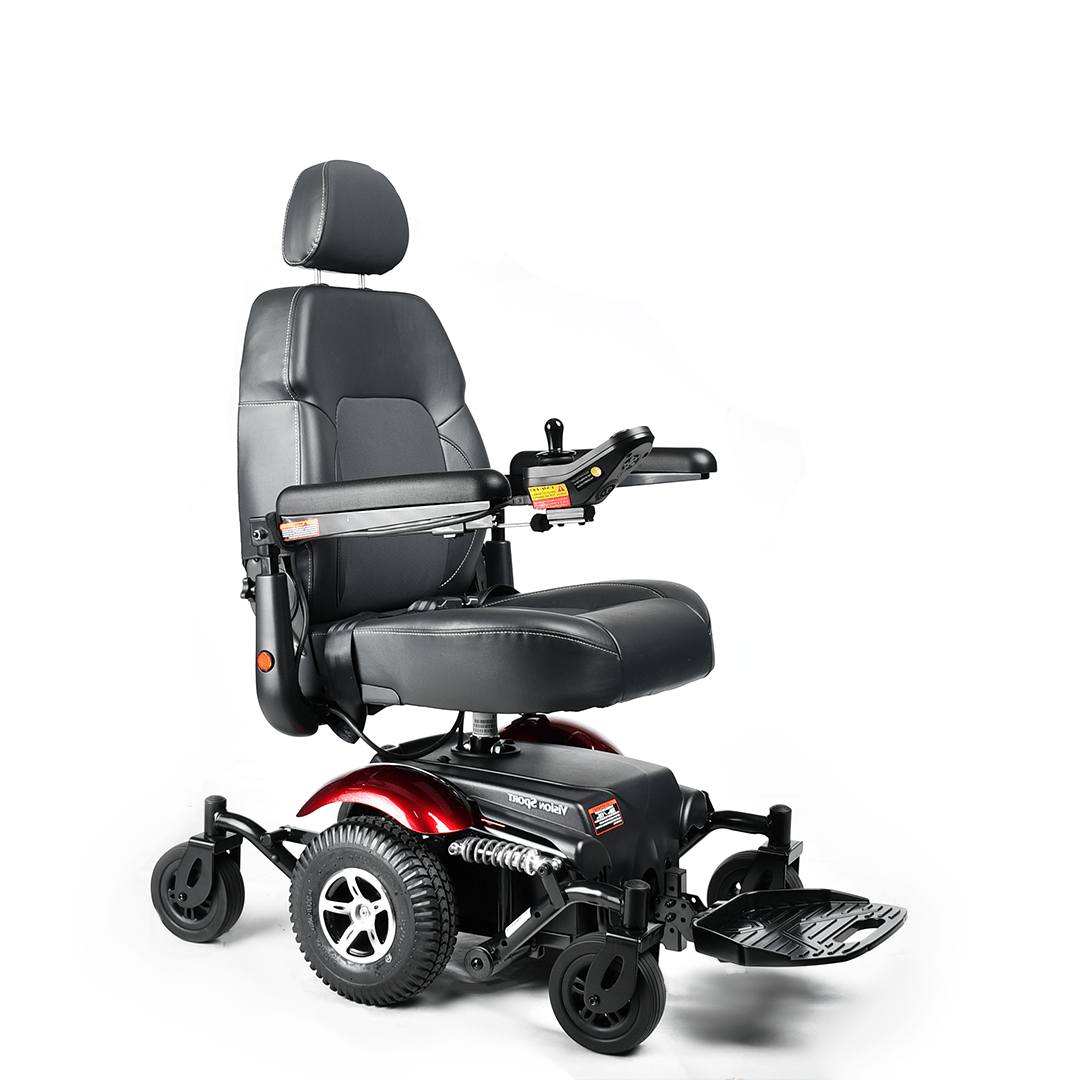

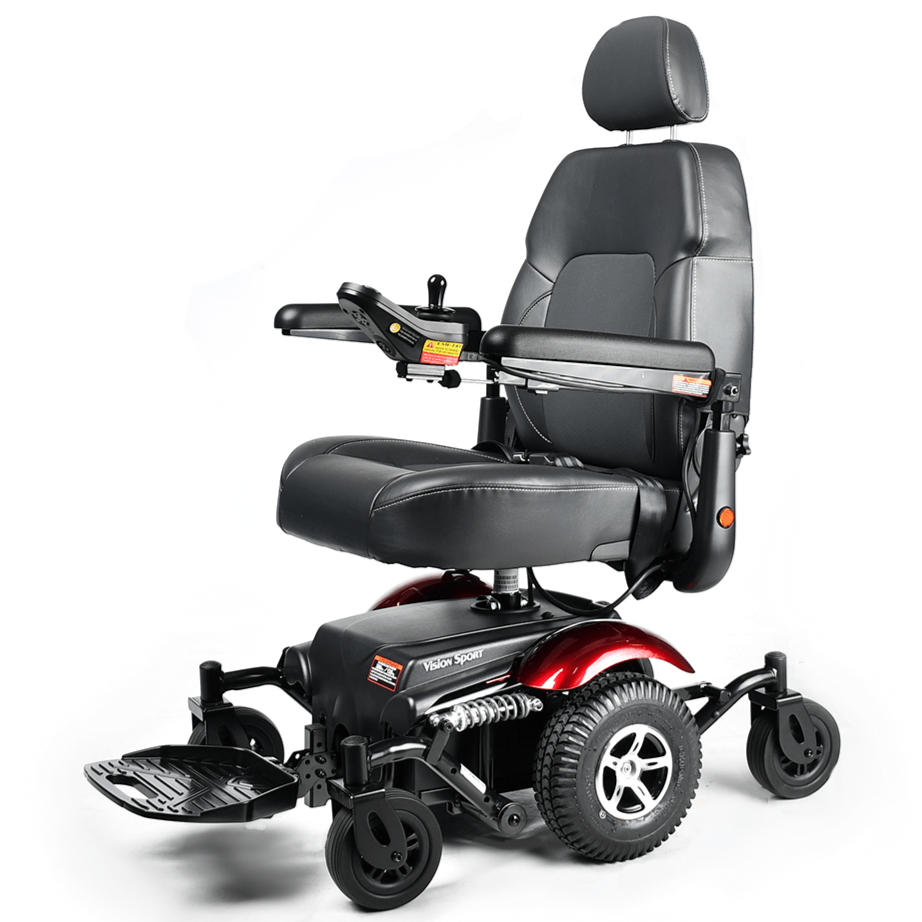

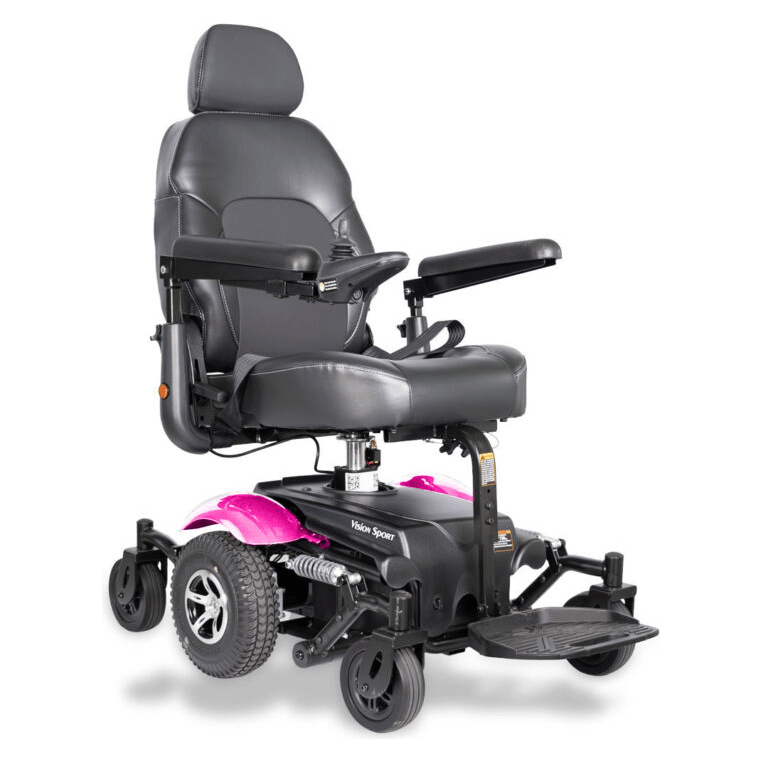

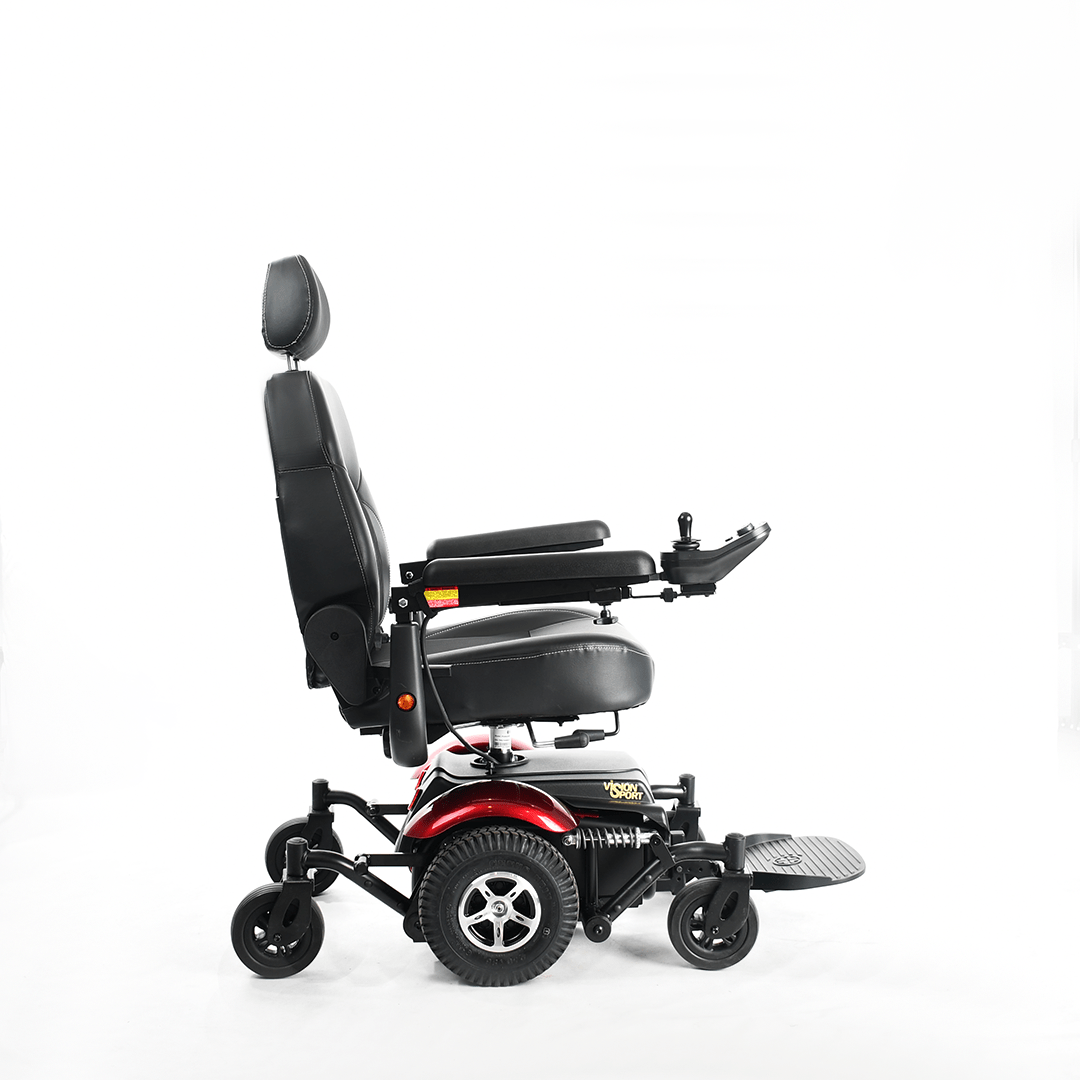

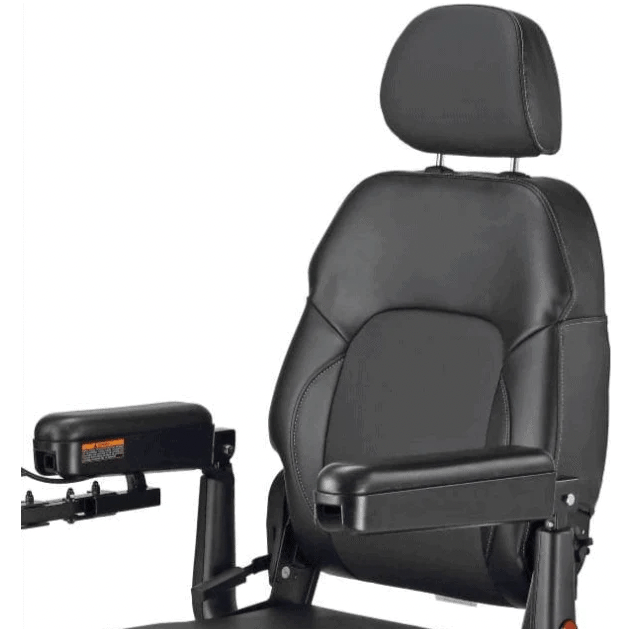

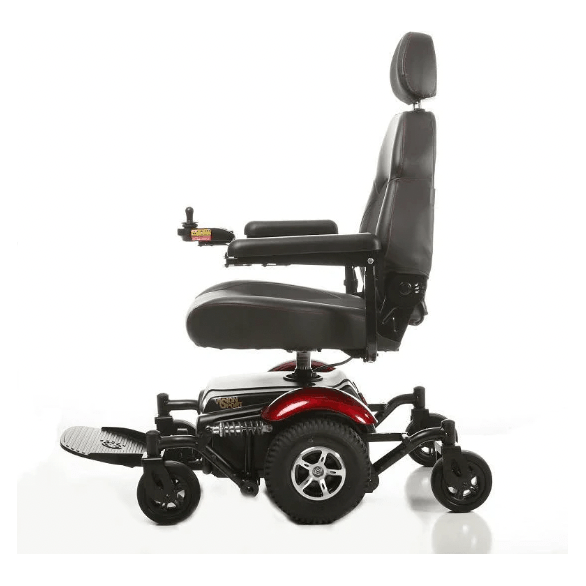

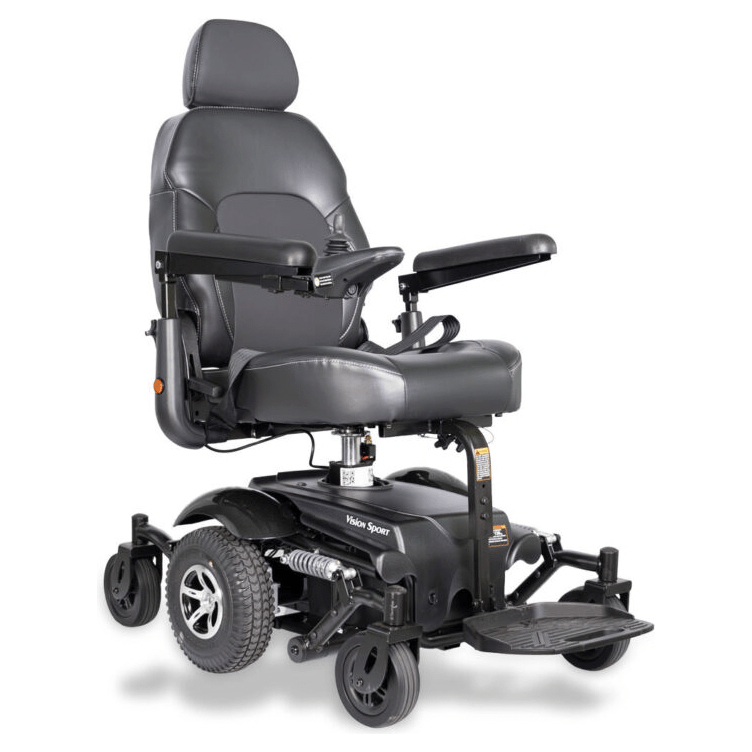

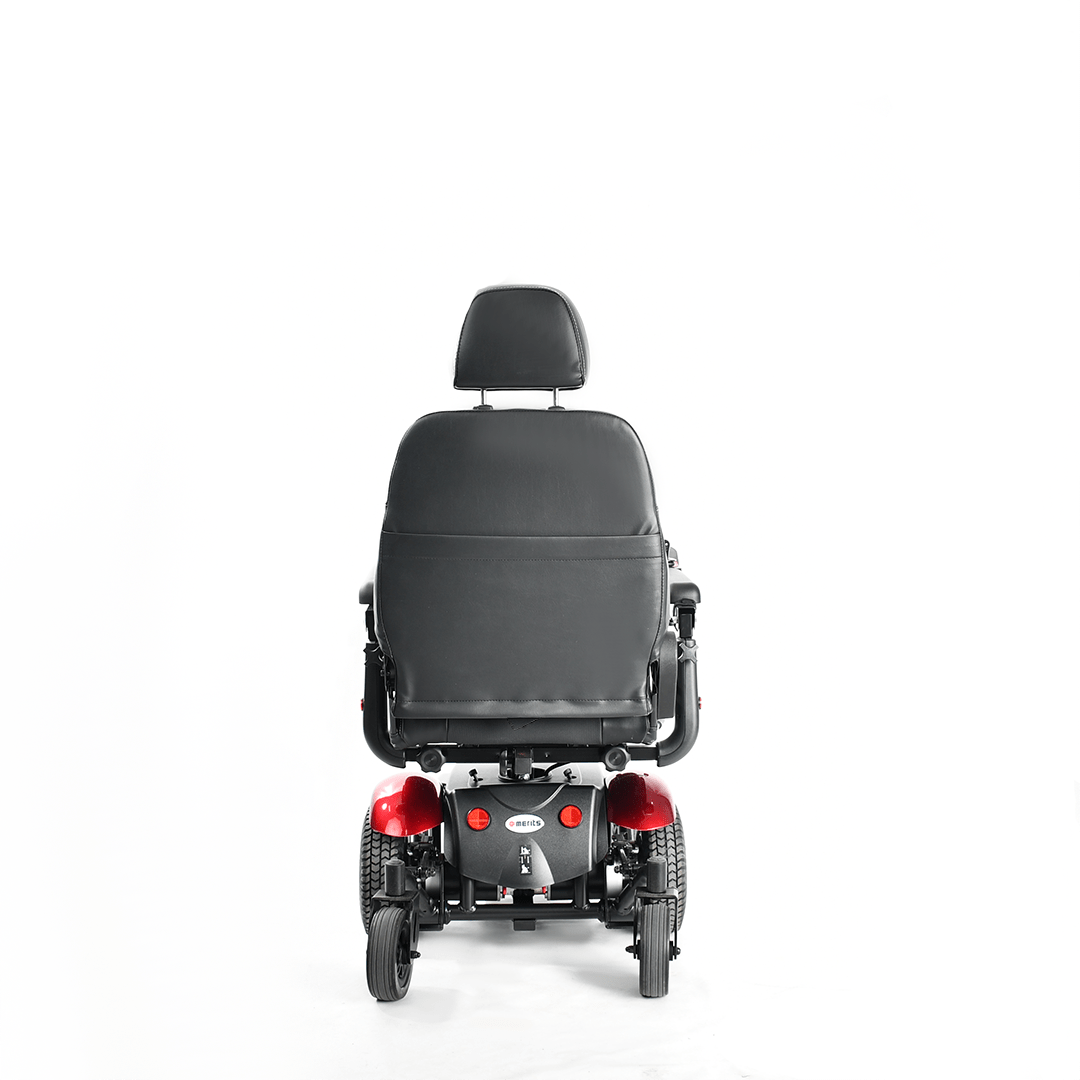

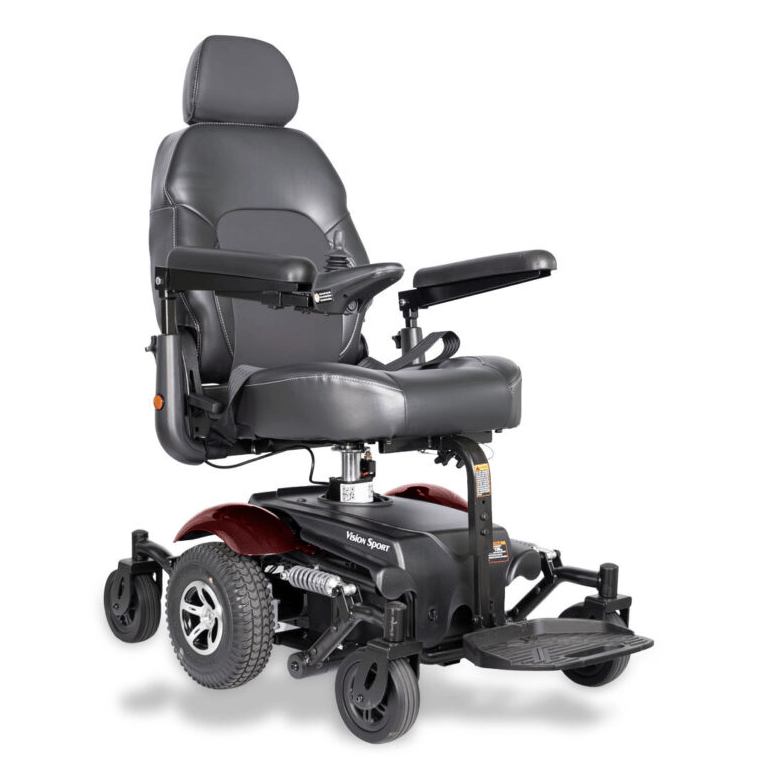

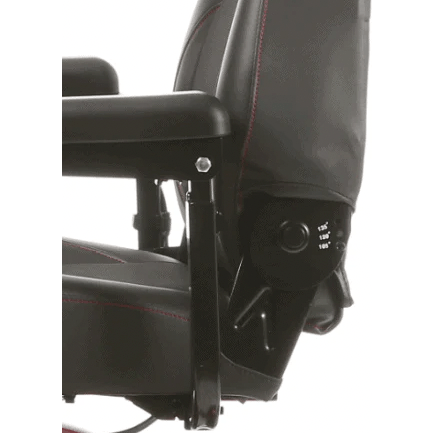

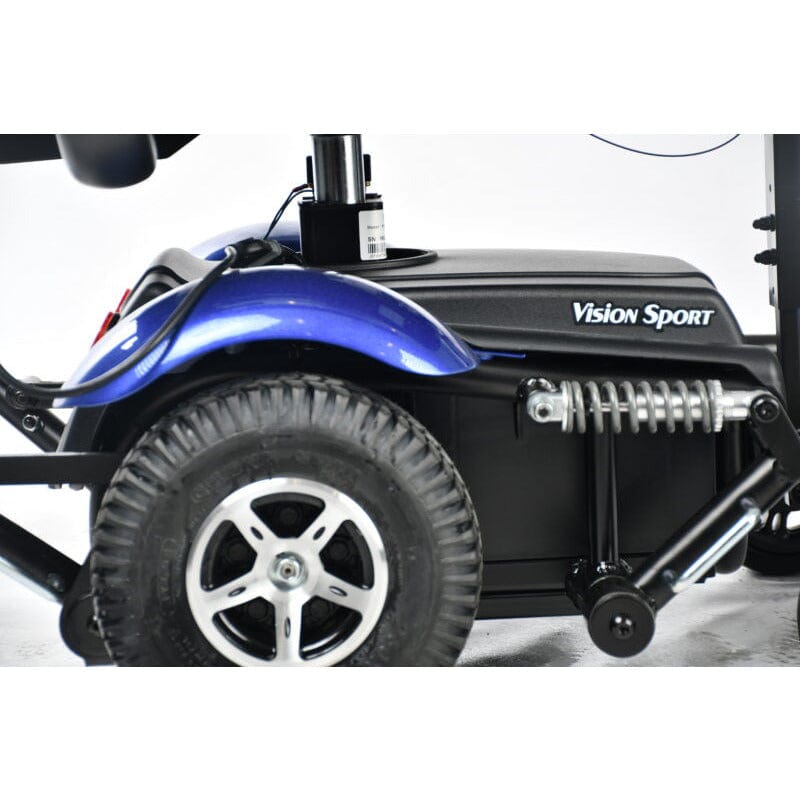

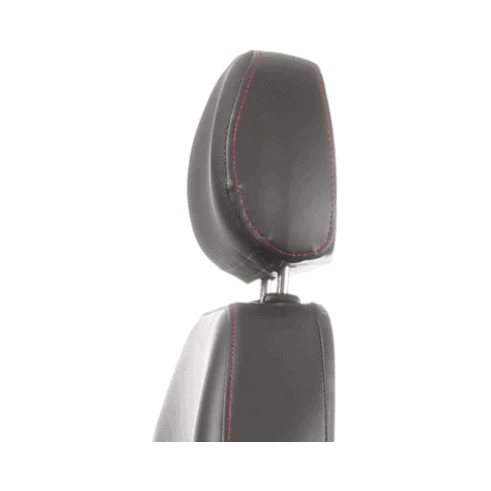

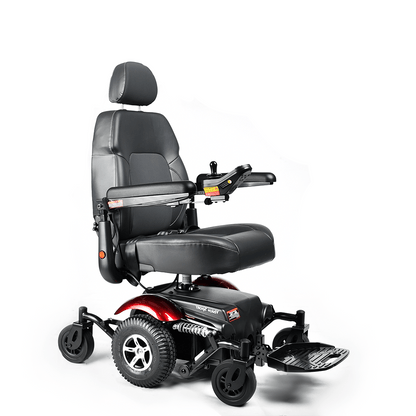

The Vision Sport Wheelchair by Merits is a mid-wheel drive power wheelchair designed for indoor and outdoor use. The chair features a full suspension system and a comfortable captain's seat with a headrest and adjustable armrests. The chair is equipped with two high-power in-line motors that provide excellent traction and stability on a variety of terrains. The Vision Sport Power Chair has a maximum speed of 5 mph and a range of up to 16 miles on a single charge. The chair also features a programmable controller that allows the user to adjust the speed, acceleration, and braking. This Merits power chair is available in a variety of colors and has a weight capacity of up to 300 lbs.

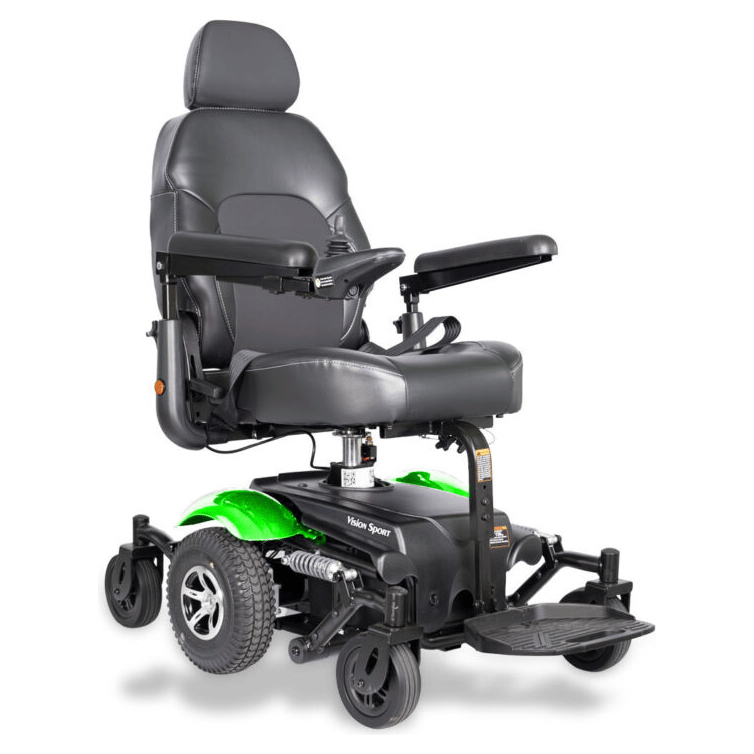

You can also add the power lifting option to this chair, which lifts you up 7.5 inches (lift seat is only available in 18" wide seat).
***See video below to see the vision sport in action!***
Standard Features
- True mid-wheel drive: 20.6″ turning radius

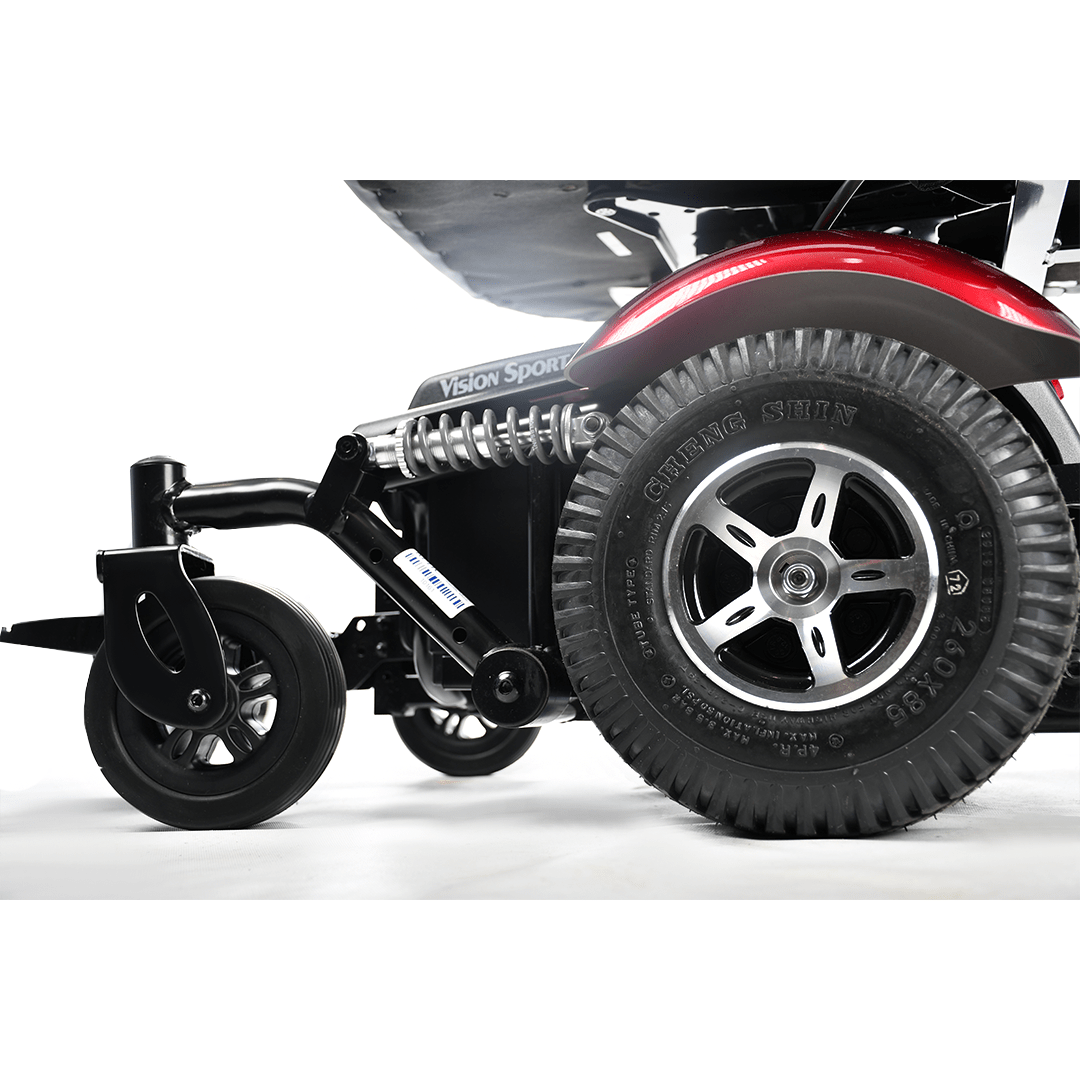

- 10″ knobby drive tires for superior traction

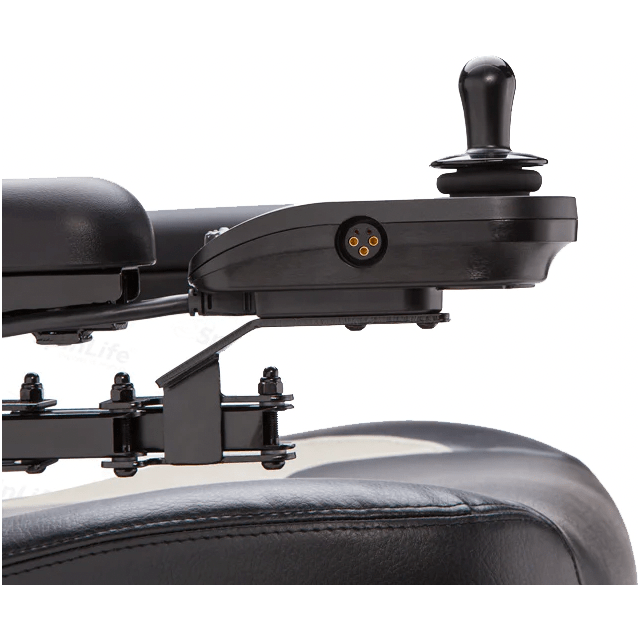

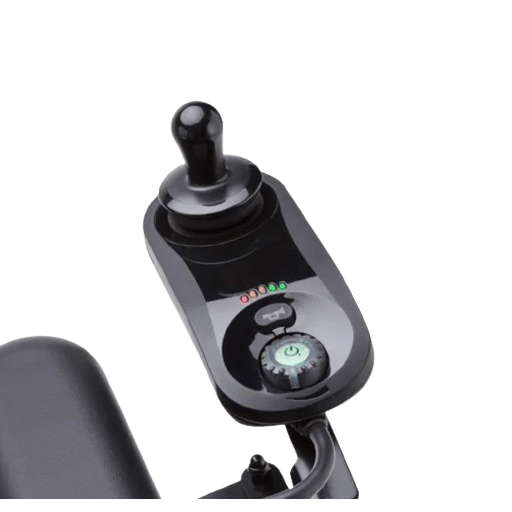

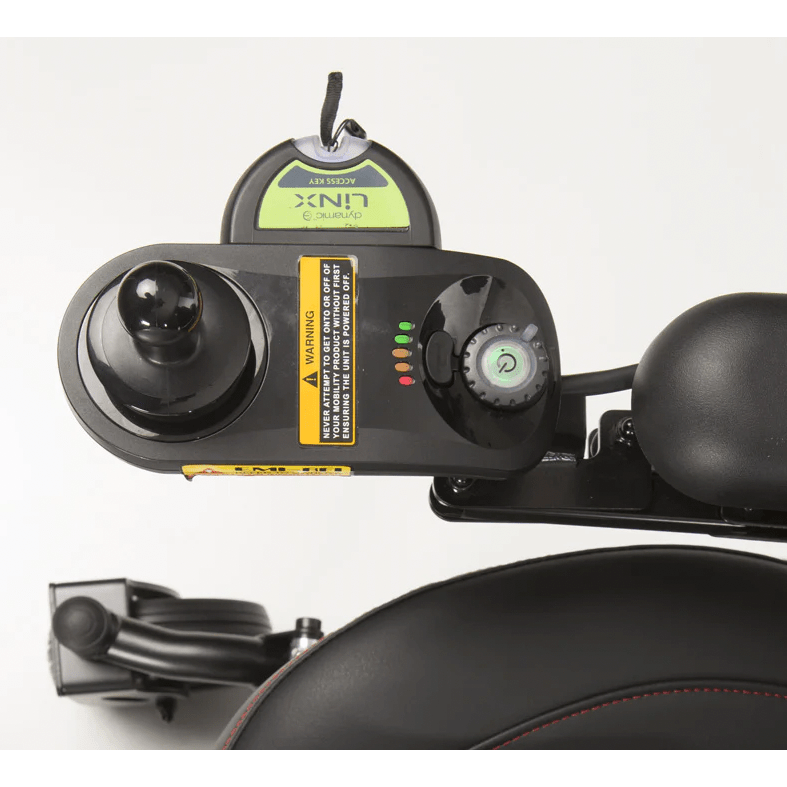

- Dynamic LiNX controller for convenient Bluetooth programming and diagnostics
- 18″ seat width with 16″-18″ depth adjustability or 20″ seat width with 18″-20″ depth adjustability
Technical Specs
Max Speed: 5mph
Range: up to 18 miles
Turning Radius: 20″
Ground Clearance: 2″
Motor: DC 24V, 160W

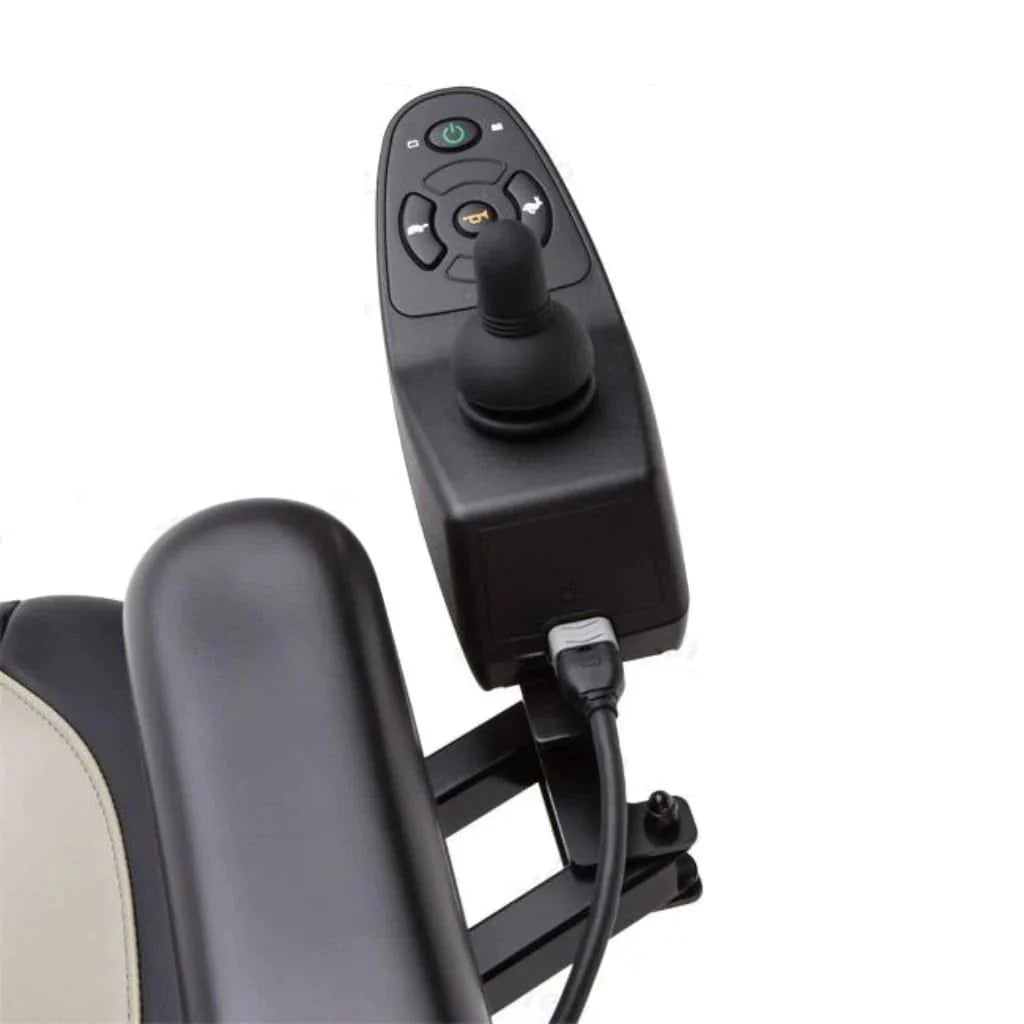

Controller: P326A Dynamic LiNX P326D Dynamic Shark
Battery: 12V/U1 x 2pcs
Charger: 4A off-board
Gradient: 6°

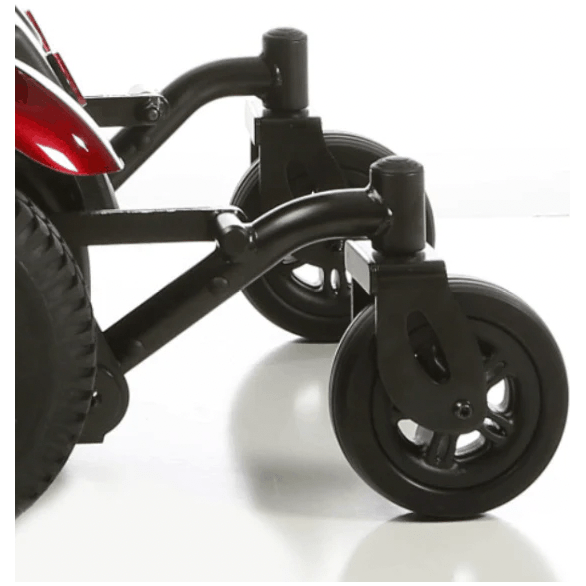

Casters: 6″ front and rear solid tires
Drive Wheels: 10″ solid tires
Brakes: intelligent, regenerative, electromagnetic
Dimensions
Seat Width: 18″ option or 20″ option
Seat Depth: 18" wide seat (depth is adjustable from 16" to 18"), 20" wide seat (depth is adjustable from 18" to 20")
Seat Height: 18" wide seat (adjustable from 17.5″ to 19.5"), 20" wide seat (adjustable from 21″ to 23″)

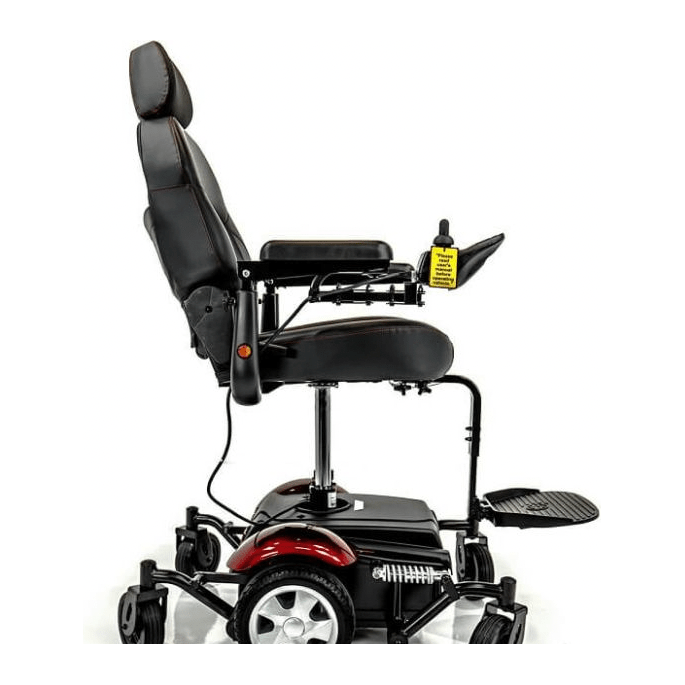

Optional Power Elevating Seat Lift: 7.5" (at extra cost - see options above)
Backrest Height: 20″
Overall Length: 34″
Overall Height: 48.5″-56″
Overall Width: 24″
Total Weight: 214 lbs/ 184 lbs
Weight Capacity: 300 lbs
Warranty
Power Chair Warranty – Lifetime Limited
Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).
For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.
Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
Resources
Owner's Manual
