Merits Health Vision CF Electric Power Wheelchair P322
- Free Shipping on Orders Over $100
- Secure Checkout
- Expert Customer Support
- Trust Mobility Dealer
- Warranty Support
- Financing Available
Questions Before You Order?
Call 631-403-0222
Couldn't load pickup availability
Product information
Learn more about the product through the tabs below.
Product Details.....(click here)
Product Details.....(click here)

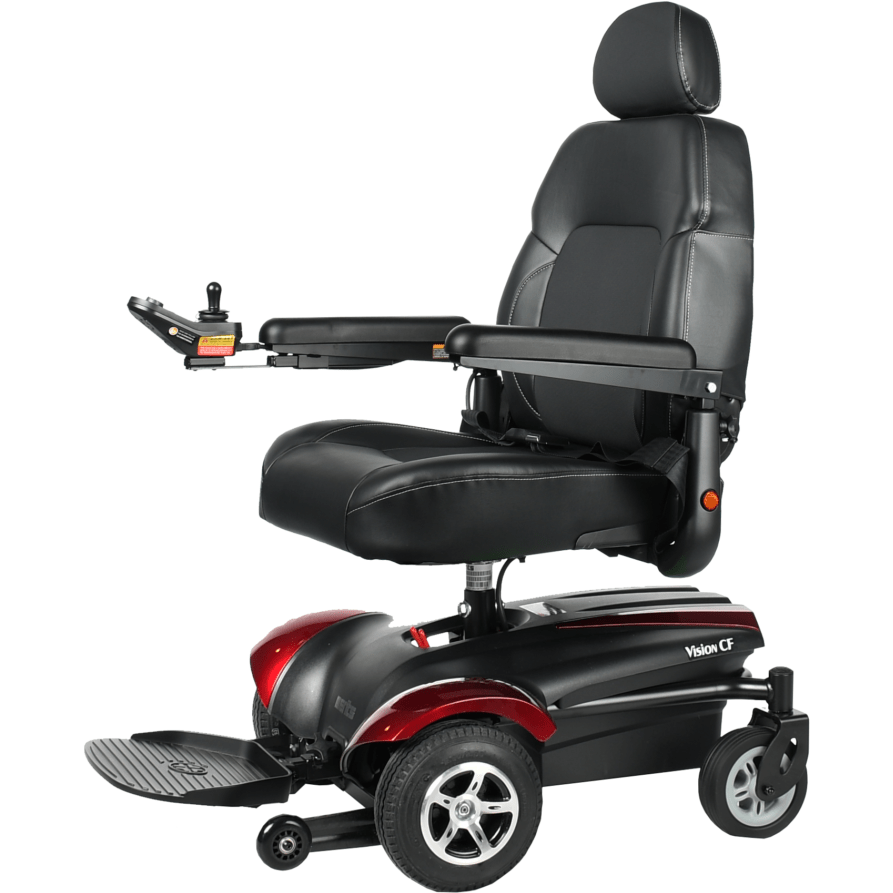

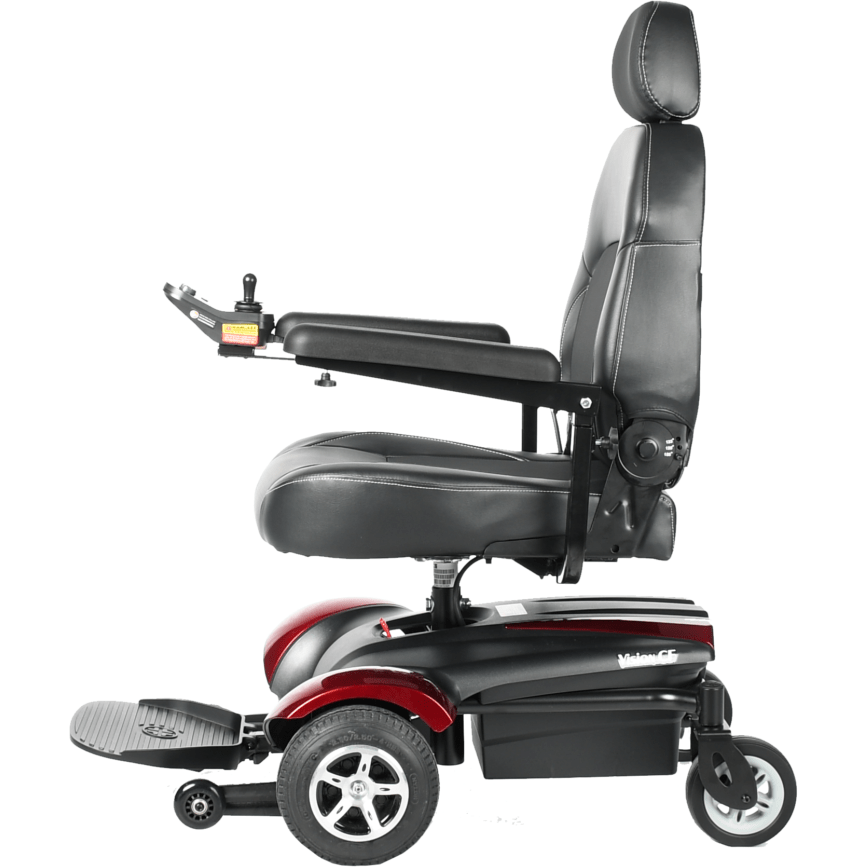

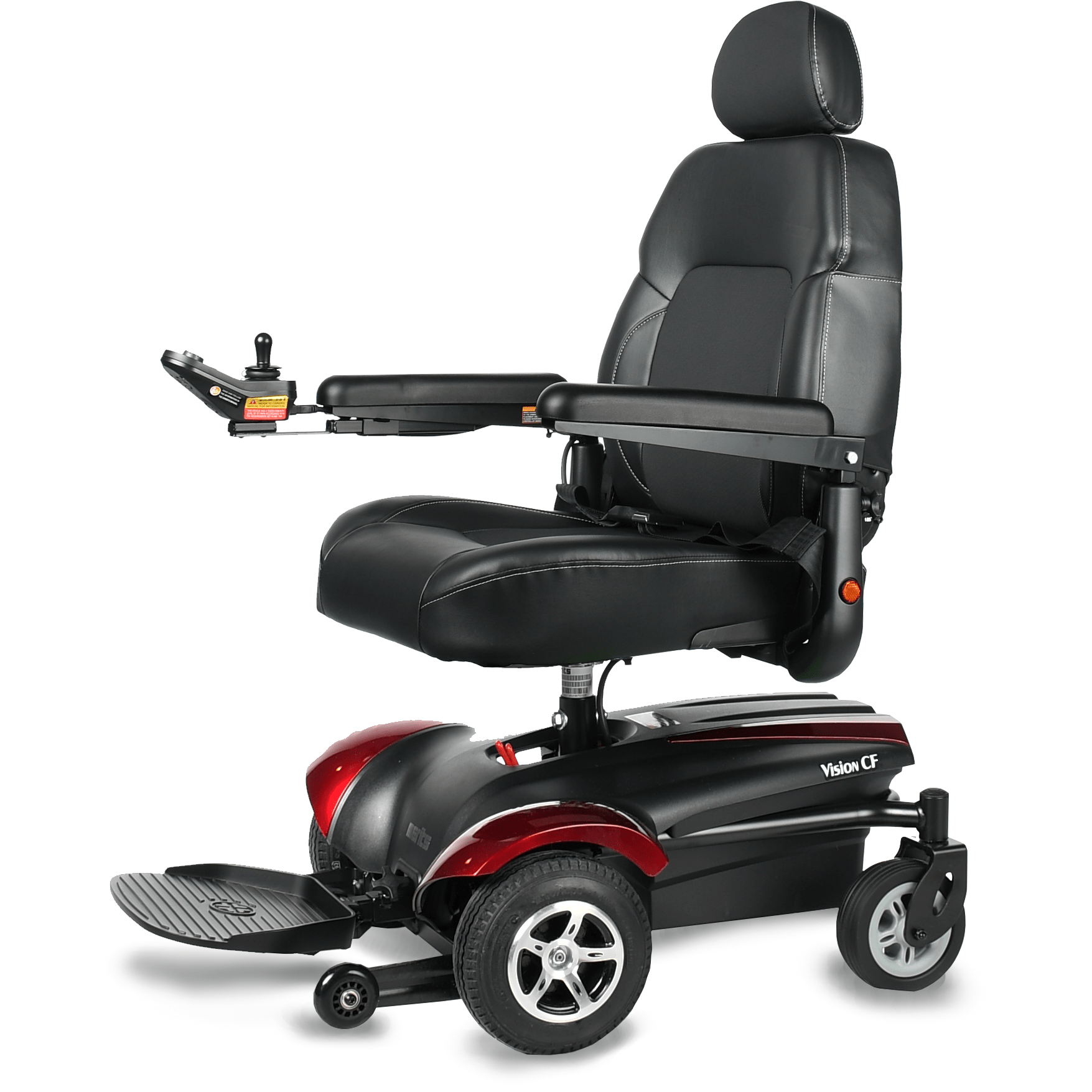

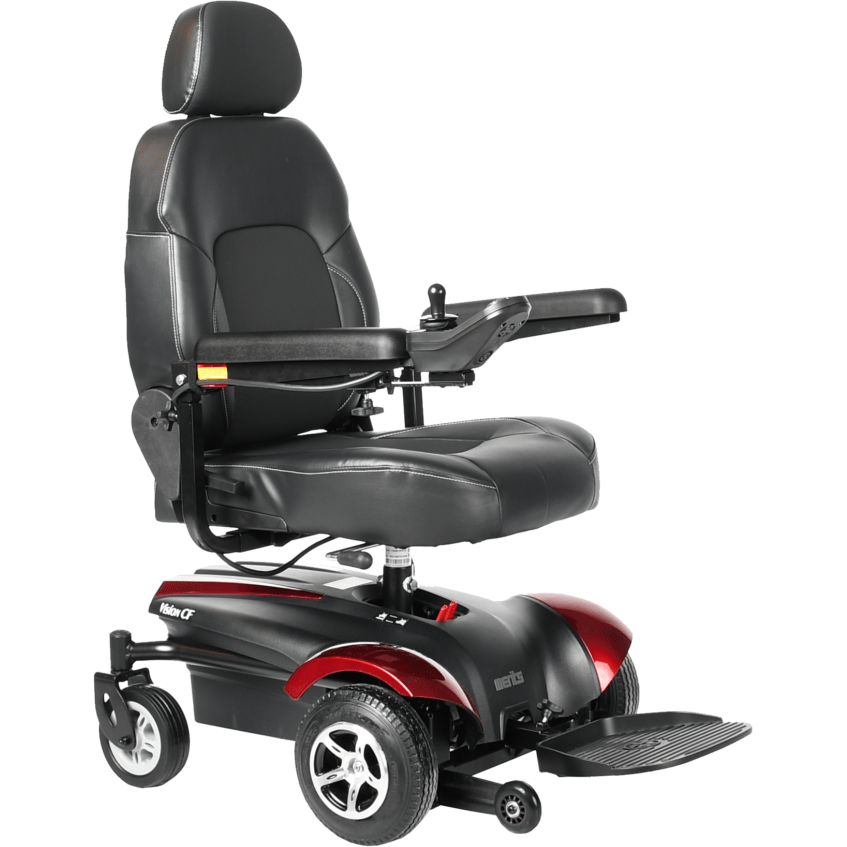

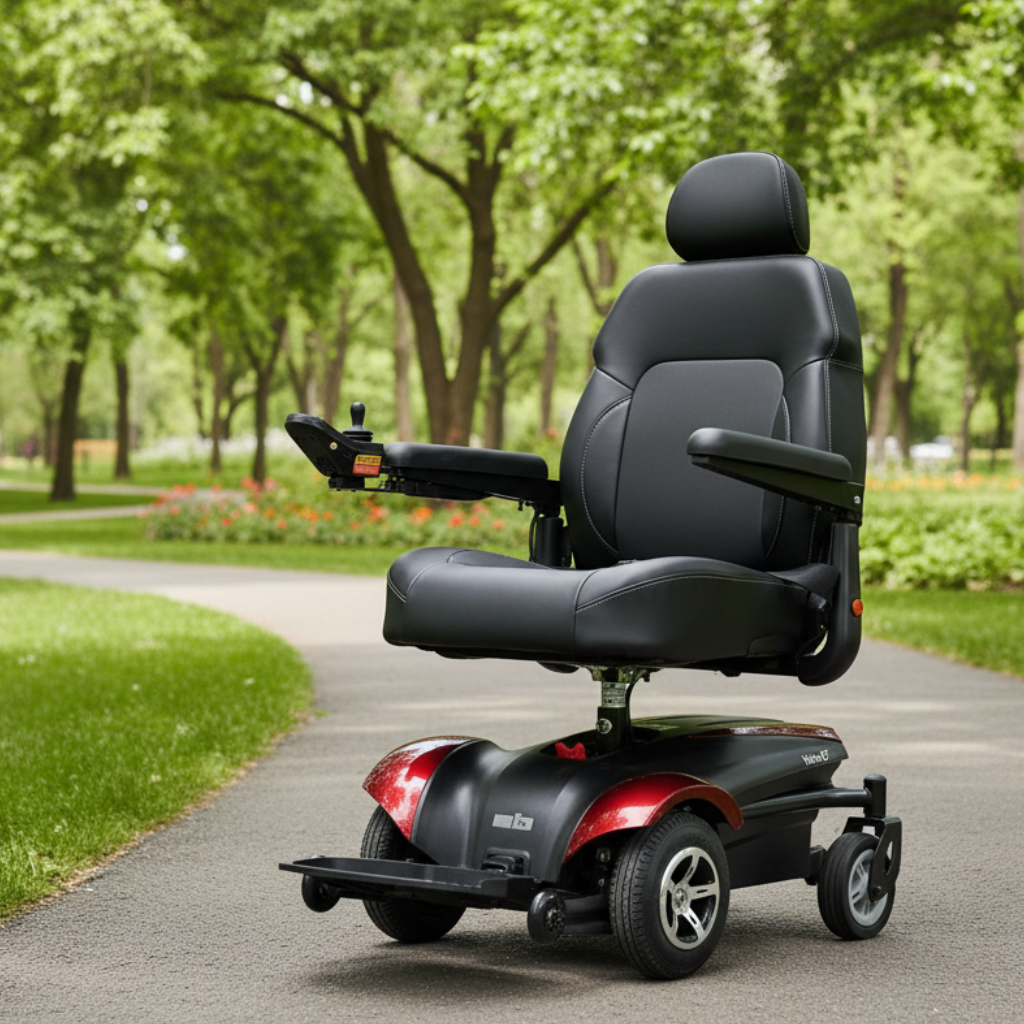

The Vision CF Power Chair is a versatile and powerful electric wheelchair designed for indoor and outdoor use. The chair features a durable and lightweight frame that can support up to 300 lbs, making it ideal for a wide range of users. The Vision CF is equipped with two high-power in-line motors that provide excellent traction and stability on a variety of terrains. The chair has a turning radius of only 20", making it easy to navigate tight spaces. The comfortable captain's seat is available in 16" and 18" widths and features a reclining backrest and adjustable headrest for added comfort. The chair also has flip-up armrests and adjustable footrests for added convenience. The Vision CF has a maximum speed of 4 mph and a range of up to 18 miles on a single charge. The chair also features a programmable controller that allows the user to adjust the speed, acceleration, and braking. The chair is available in red and blue colors and has a weight capacity of up to 300 lbs.
Standard Features
- 18 or 20-inch seat width with 18 – 20 inch depth adjustability
- Ergonomic, semi-reclining high-back seat; up to 135°
- 9-inch drive tires, 6-inch casters

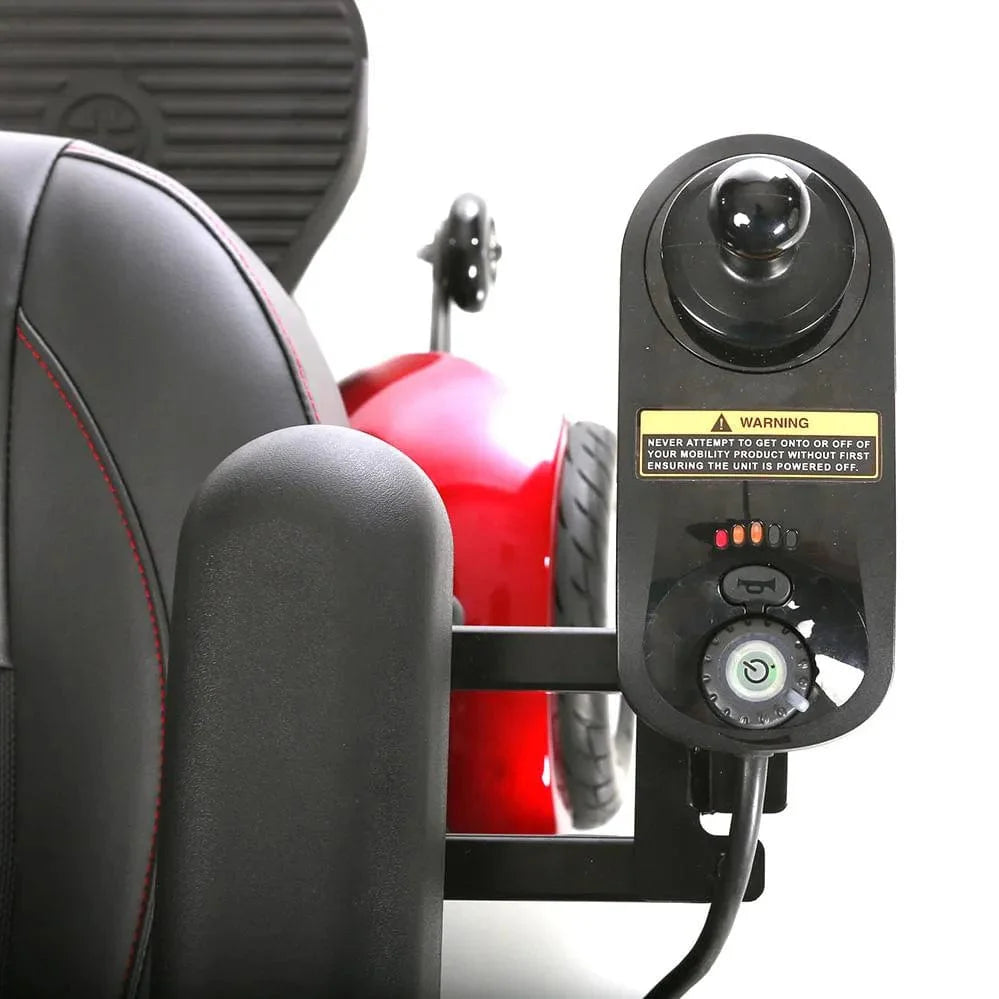

- Dynamic LiNX controller for convenient programming and diagnostics
- Premium AGM 34 AH U1 batteries
- Weight of the heaviest piece: 53.5 lbs
- Color: Red only
Technical Specs
Max Speed: 4mph
Range: up to 18 miles
Turning Radius: 21″
Ground Clearance: 2.4″
Motor: DC 24V, 130W
Controller: Dynamic LiNX
Battery: 12/U1(24AH) x 2pcs
Charger: 4A off-board
Gradient: 6°
Casters: 6″ foam filled tires
Drive Wheels: 9″ foam filled tires
Brakes: intelligent, regenerative, electromagnetic
Dimensions
Seat Width: 18″/20″
Seat Depth: 18″
Seat Height: 20″-22″
Backrest Height: 20″
Overall Length: 33″
Overall Height: 48.5-56″
Overall Width: 24″
Total Weight: 154 lbs
Weight Capacity: 300 lbs
Owners Manual upon request
