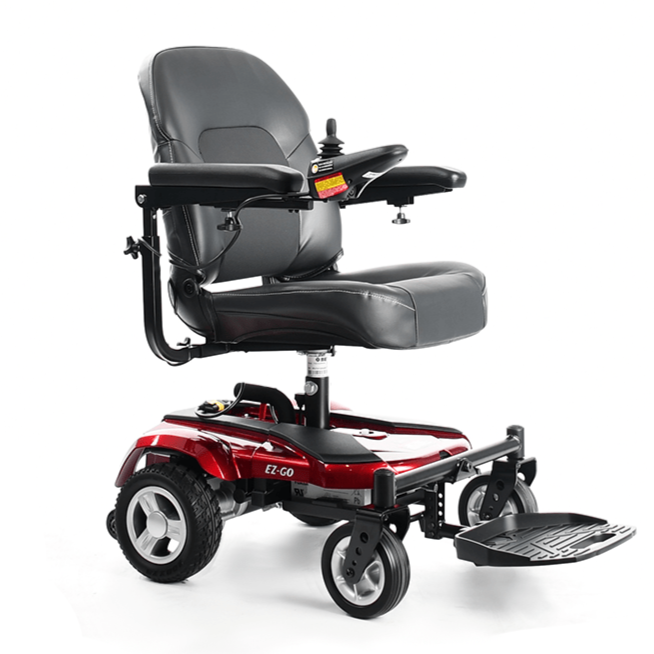

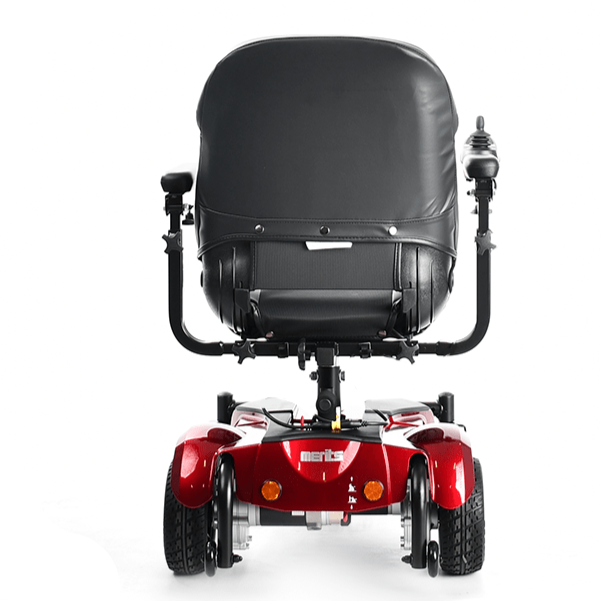

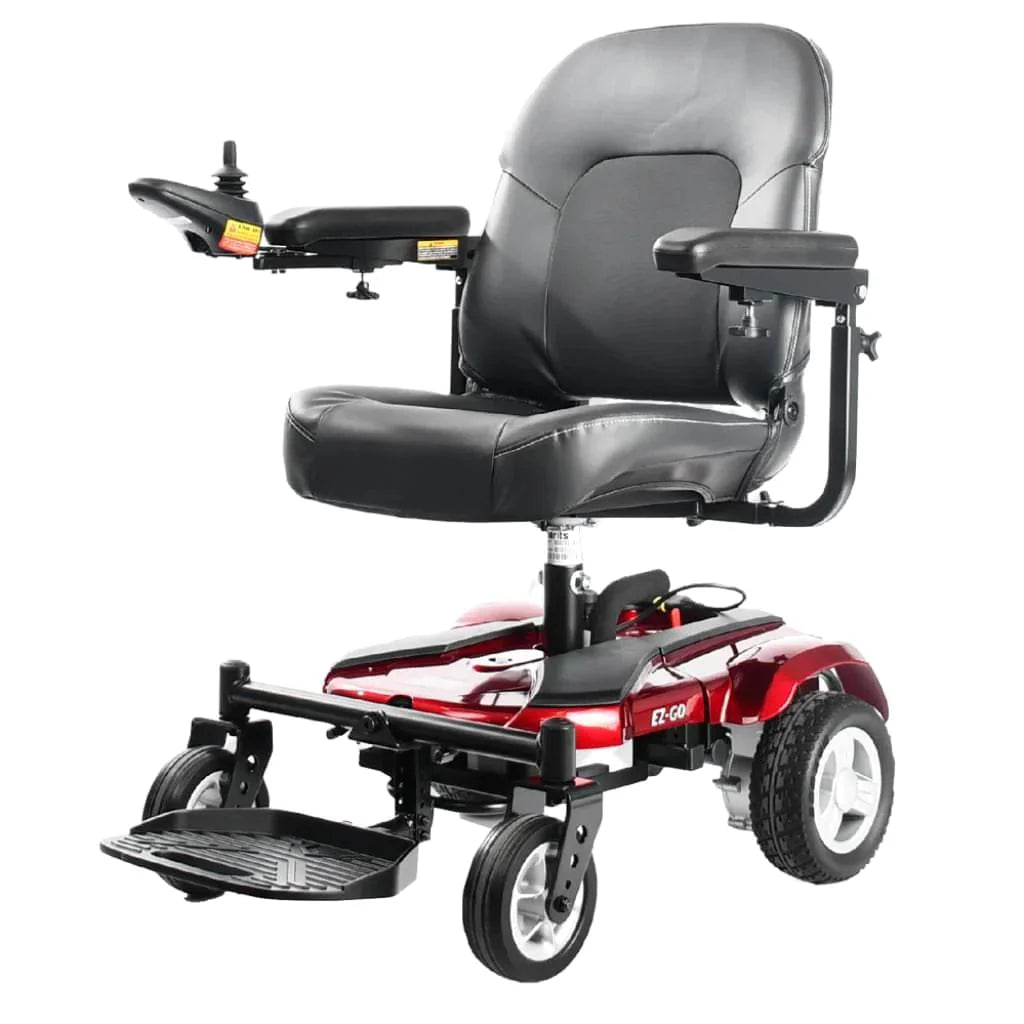

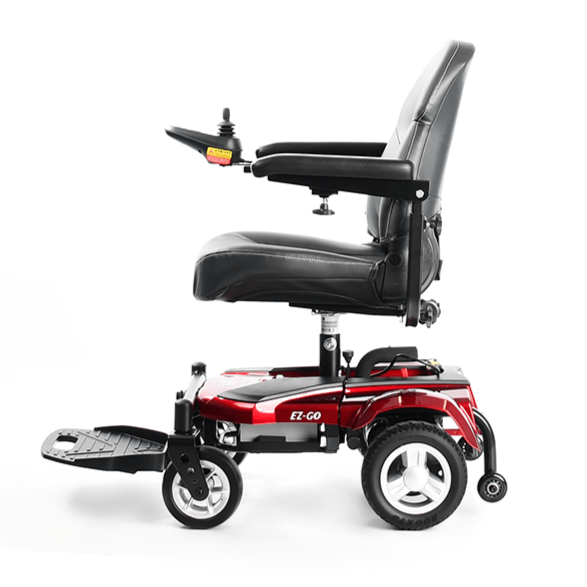

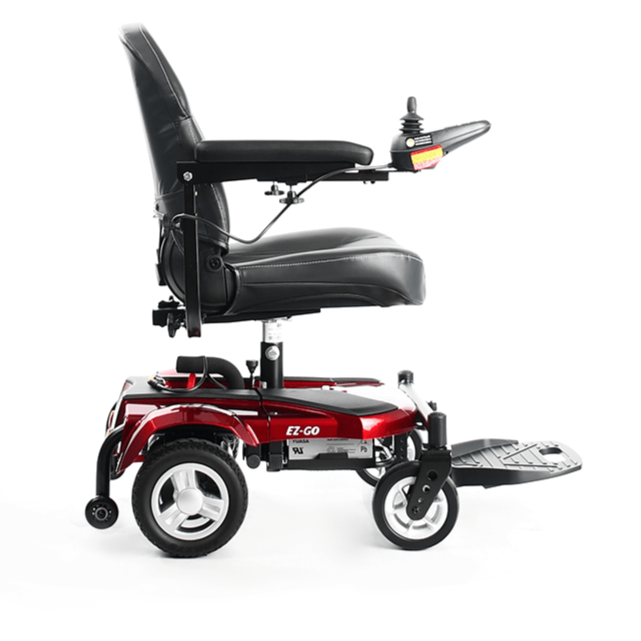

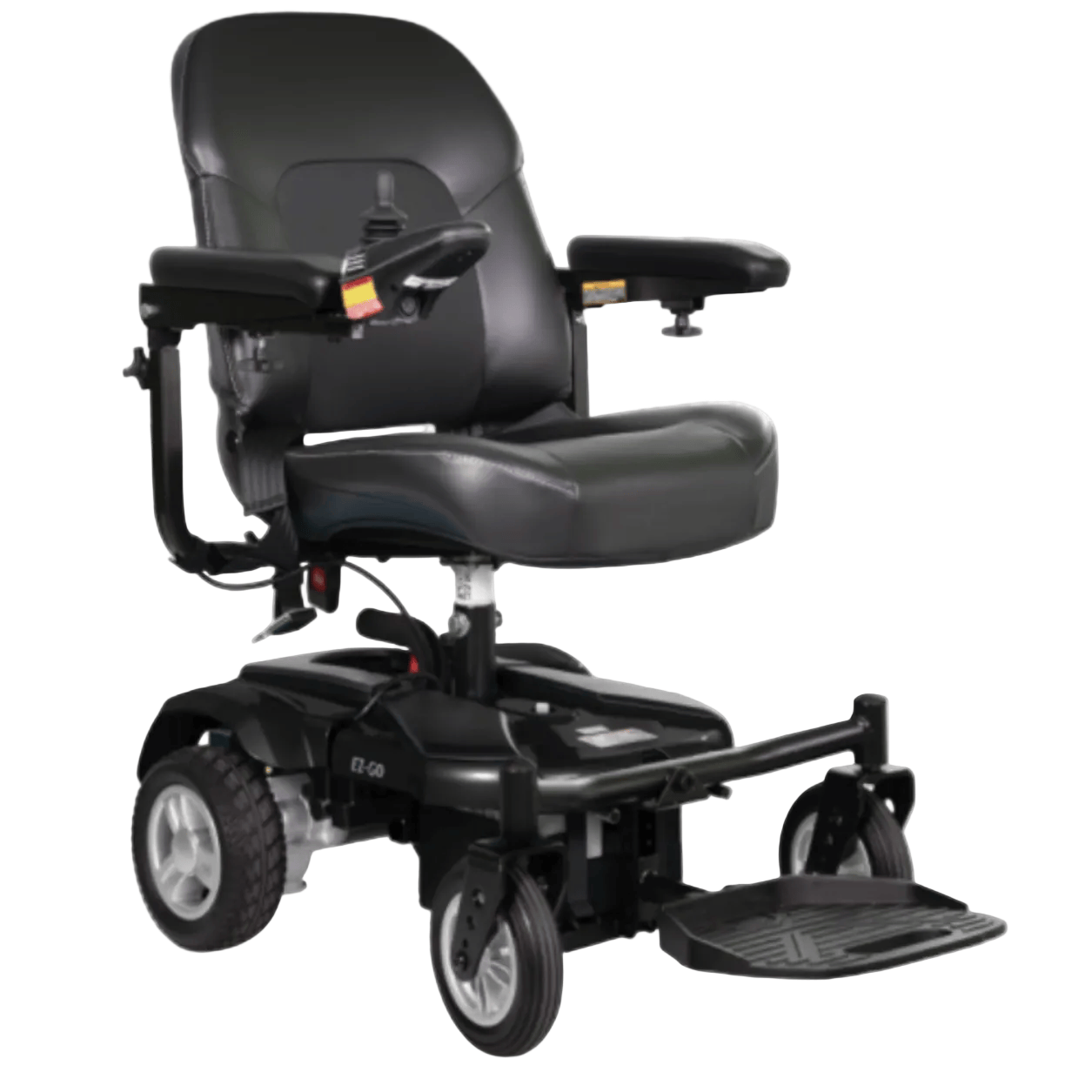

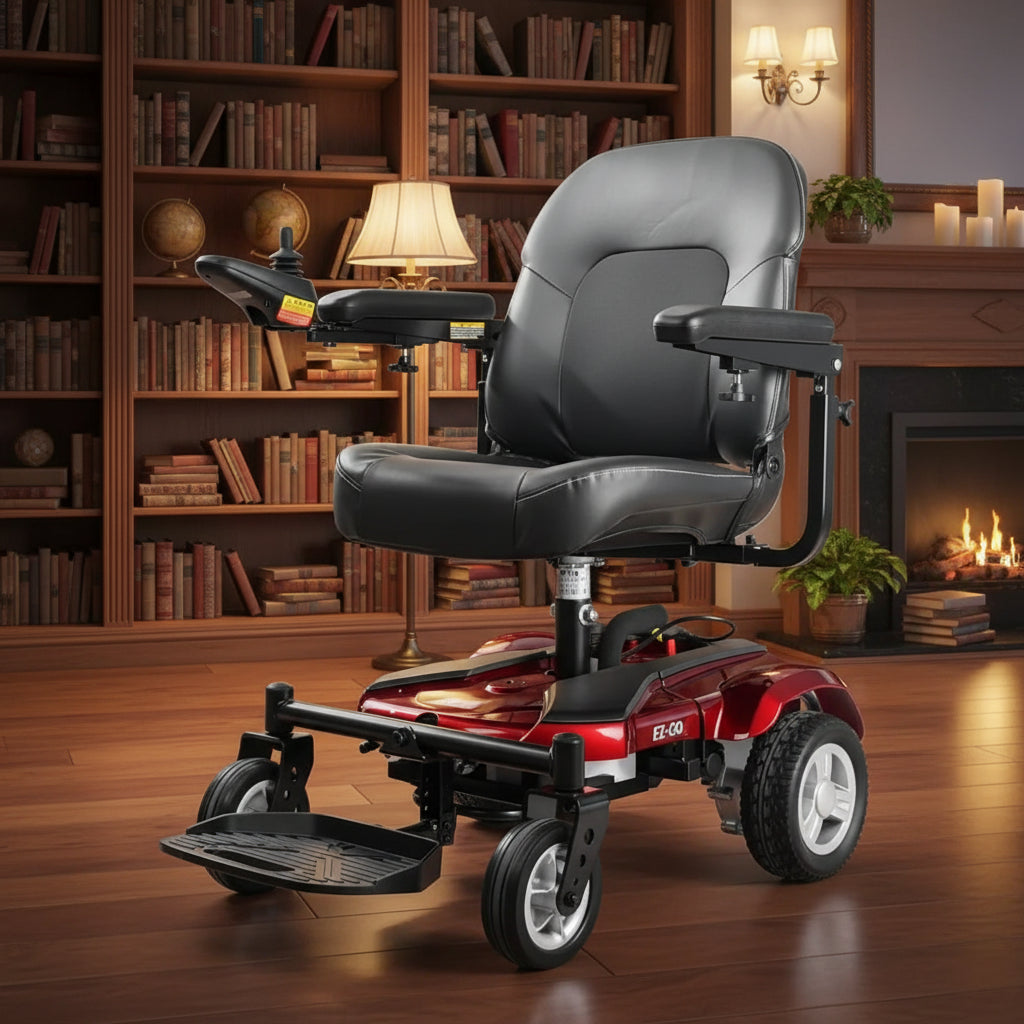

Merits EZ GO Electric Power Wheelchair P321

Chair Color
Joystick Mount Side
Shipping Options
Regular price $1,914.00 USD
Regular price $2,350.00 USD Sale price $1,914.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Standard Merits EZ GO Wheelchair Features

  • Ergonomic mid-back seat for additional back support: 18”W x 16”D x 18”H

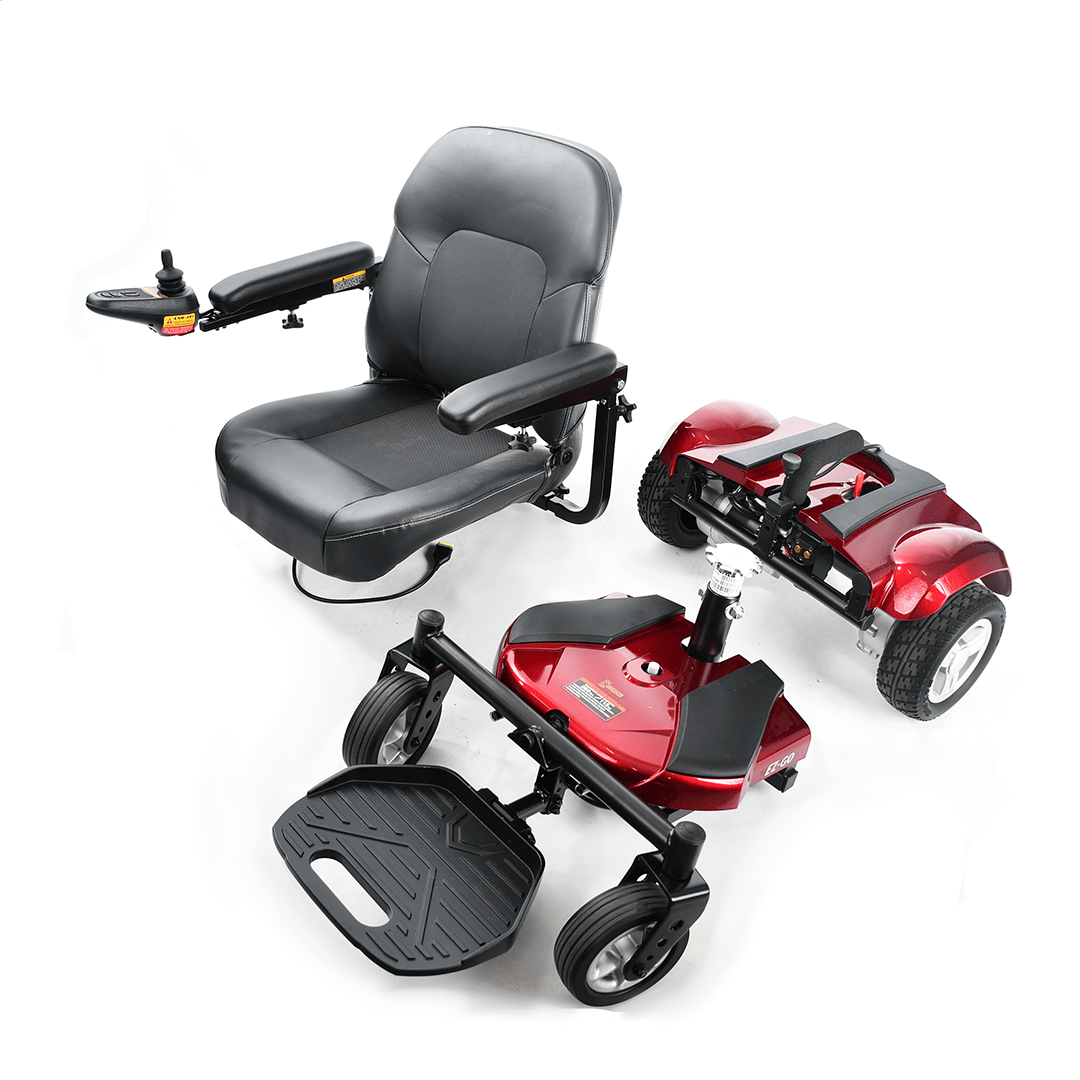

  • Quick connect feature for easy assembly and transportation
  • Compact and lightweight design: 100 lbs. overall weight
  • Turning radius of 23” for easy maneuverability in tight spaces

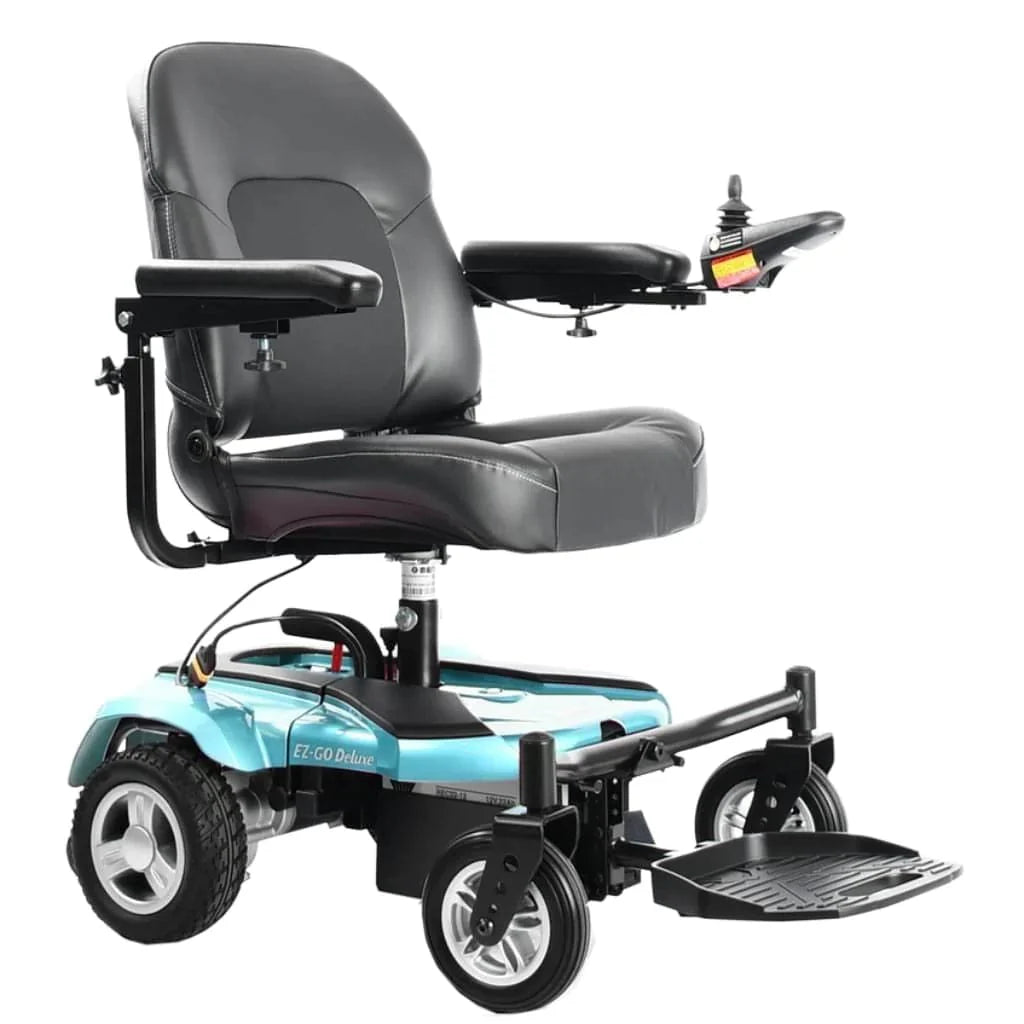

Merits EZ GO Deluxe Features

  • Ergonomic mid-back seat for additional back support: 18”W x 16”D x 18”H
  • Higher weight capacity of 300 lbs.
  • Quick connect feature for easy assembly and transportation
  • Compact and lightweight design: 113 lbs. overall weight
  • 22 Ah batteries for extended range

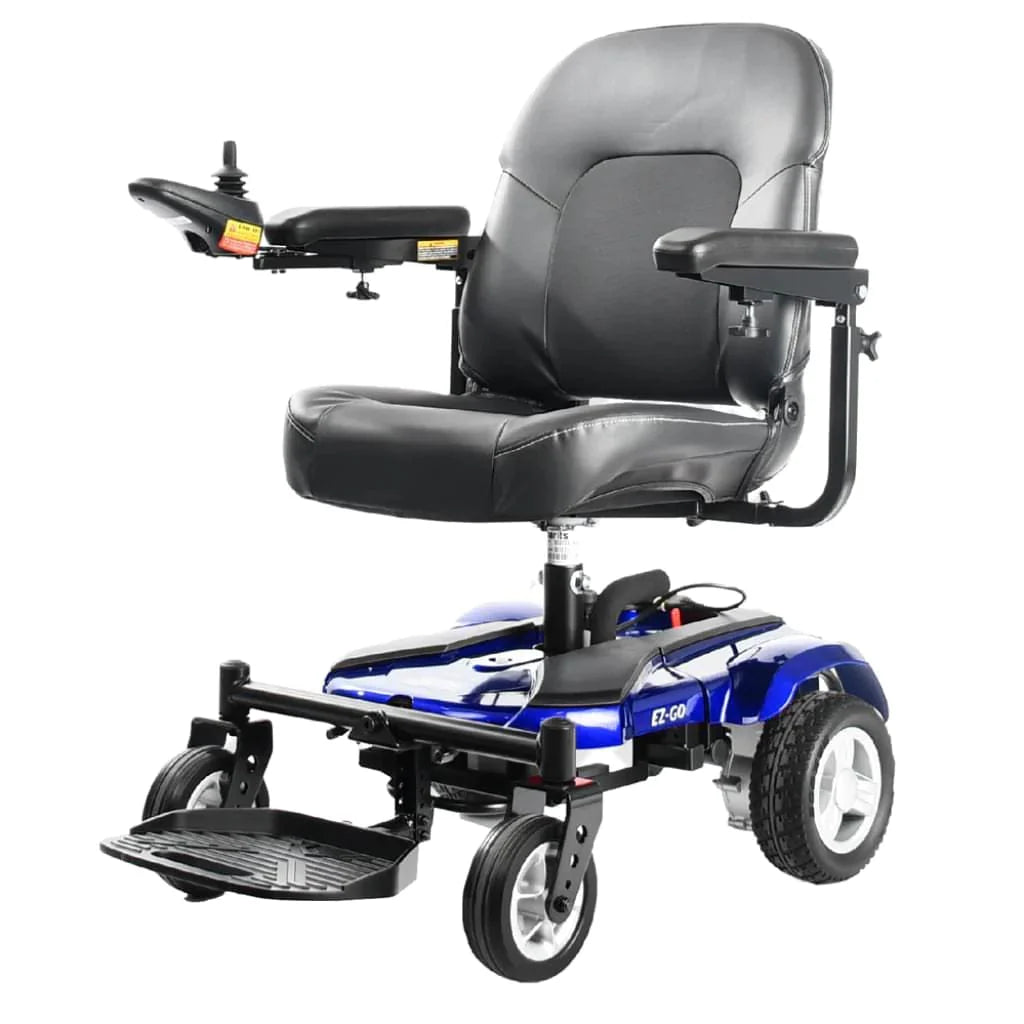

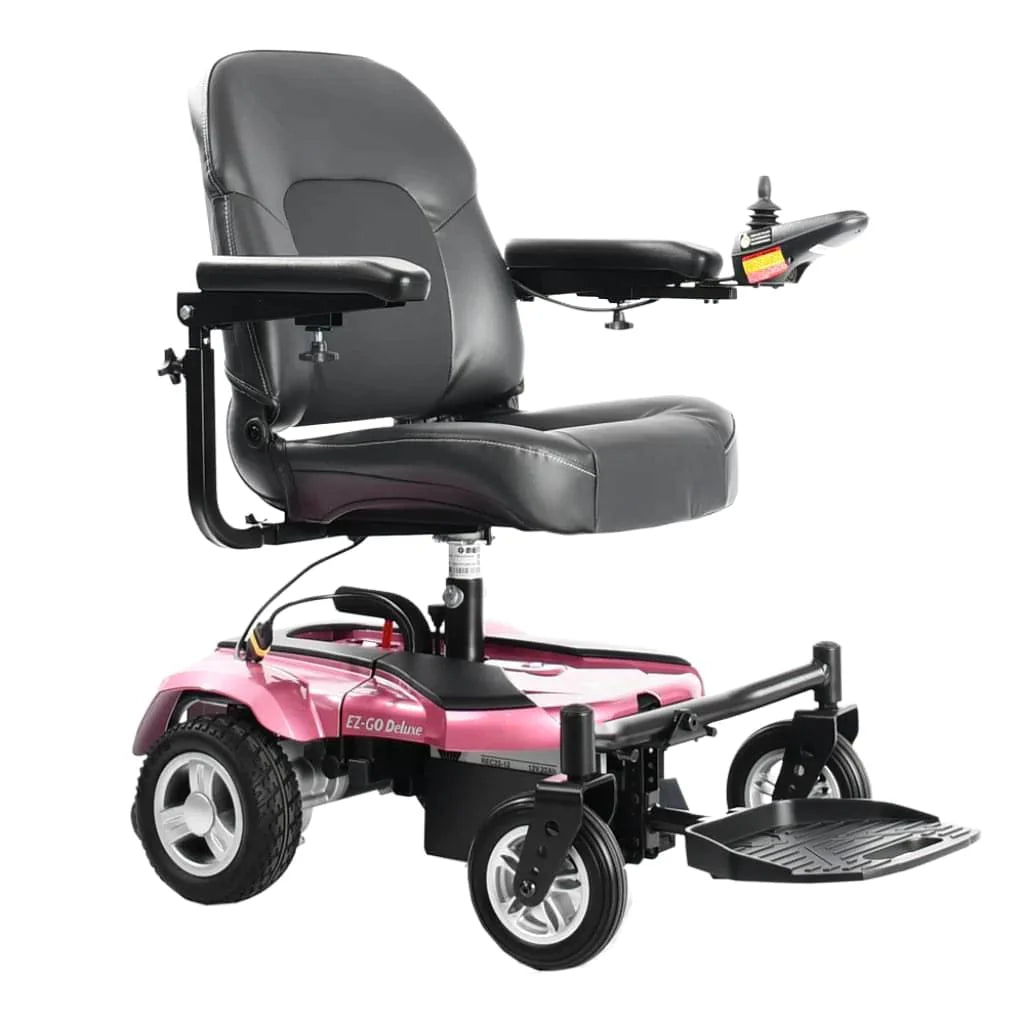

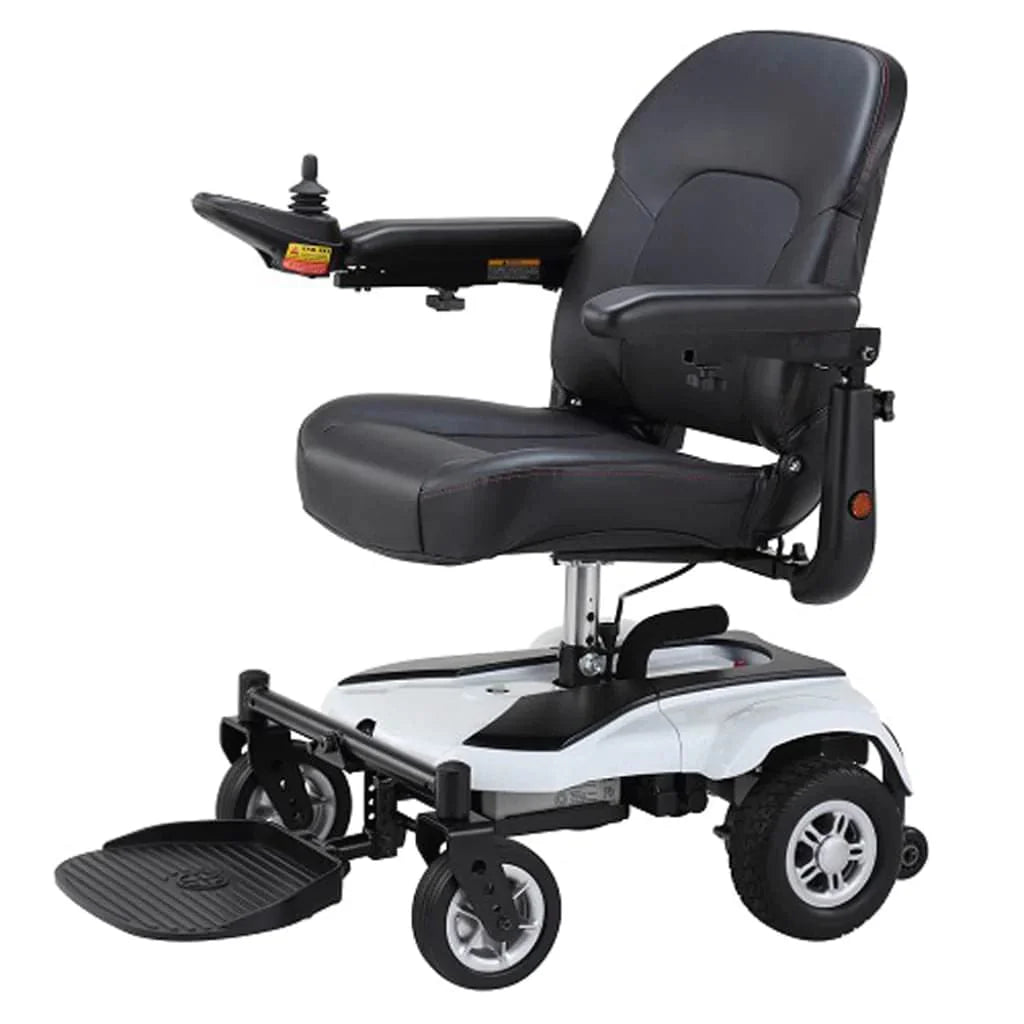

  • Available in pink, white and turquoise

Technical Specs

Max Speed: 4mph

Range: up to 9 (EZ-GO) or 12 (Deluxe) miles

Turning Radius: 23″

Ground Clearance: 2.25″ (EZ-GO) or 1.8″ (Deluxe)

Motor: DC 24V, 90W

Controller: PG VSI 50A

Battery: 12V/14AH x 2pcs (EZ-GO) or 12V/22AH x 2pcs (Deluxe)

Charger: 1.5A off-board

Gradient:

Casters: 6″ (EZ-GO) or 7″ solid tires (Deluxe)

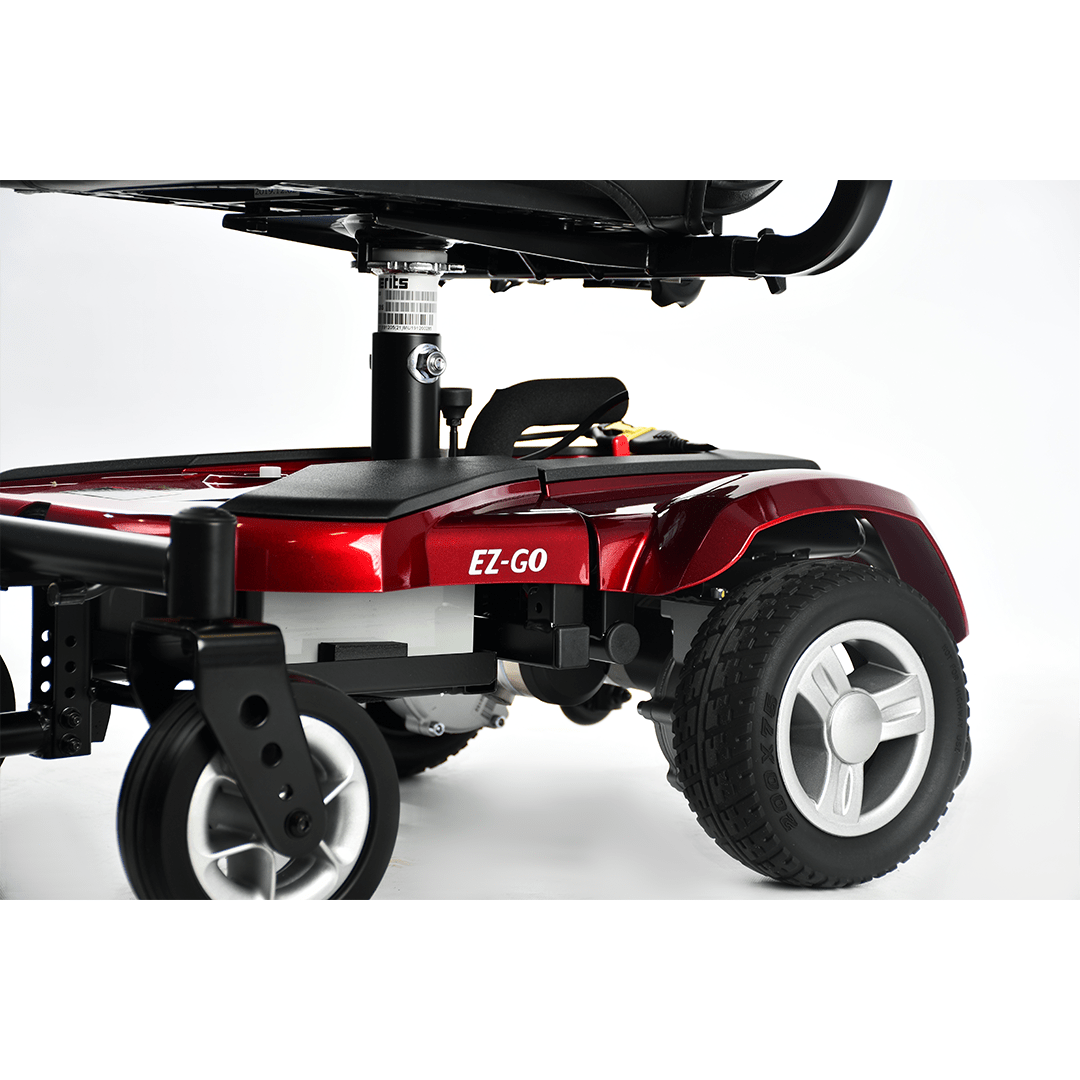

Drive Wheels: 8″ x 3″ solid tires

Brakes: intelligent, regenerative, electromagnetic

Dimensions

Seat Width: 16″

Seat Depth: 16″

Seat Height: 18″

Overall Length: 34″

Overall Height: 33″

Overall Width: 22″

Total Weight: 100 lbs (EZ-GO) or 113 lbs (Deluxe)

Weight Capacity: 250 lbs (EZ-GO) or 300 lbs (Deluxe)

Warranty

Power Chair Warranty – Lifetime Limited

Merits Health Products, Inc. warrants the main frame of the easy go wheelchair against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).

For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.

Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.

Resources

Owner's Manual
