Merits Health

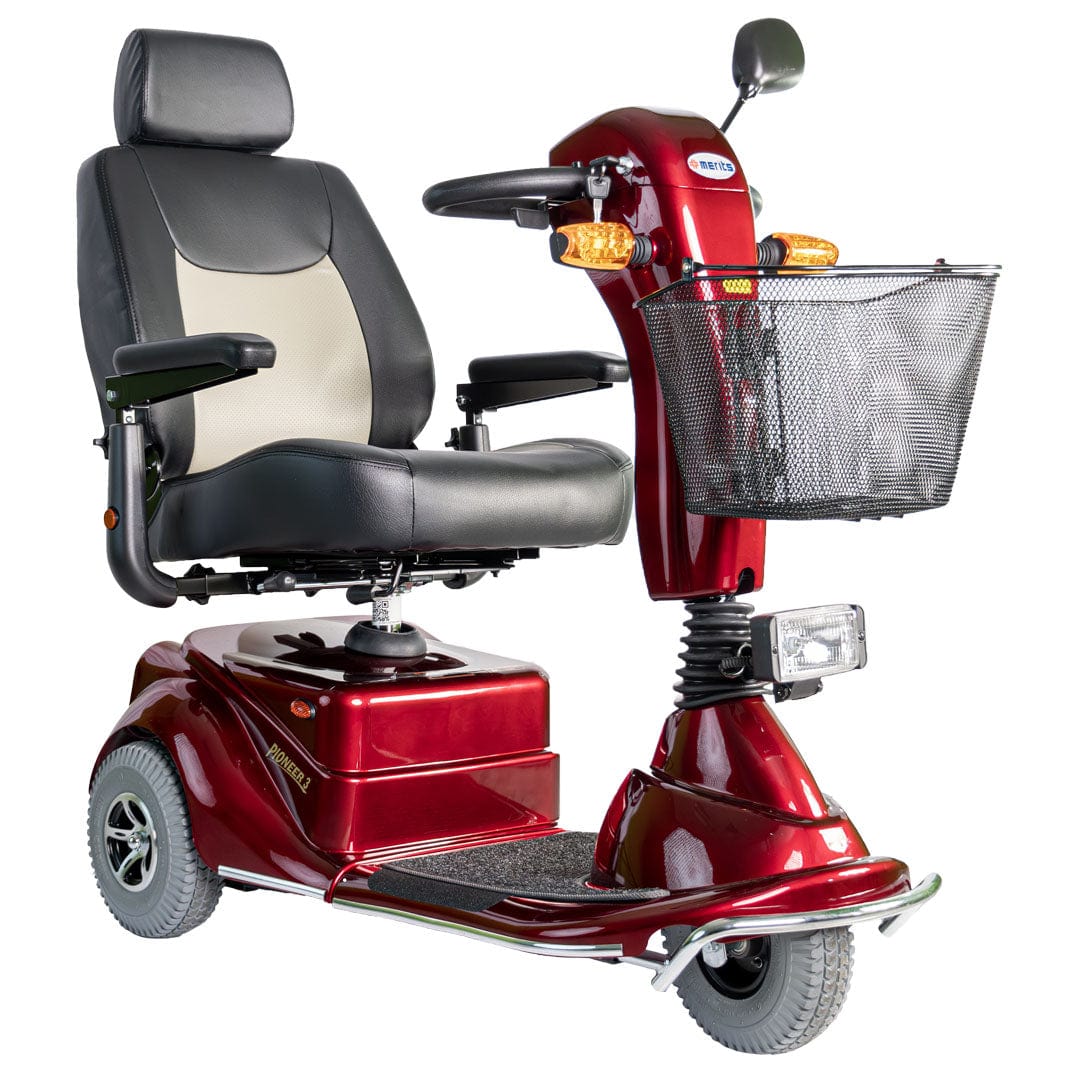

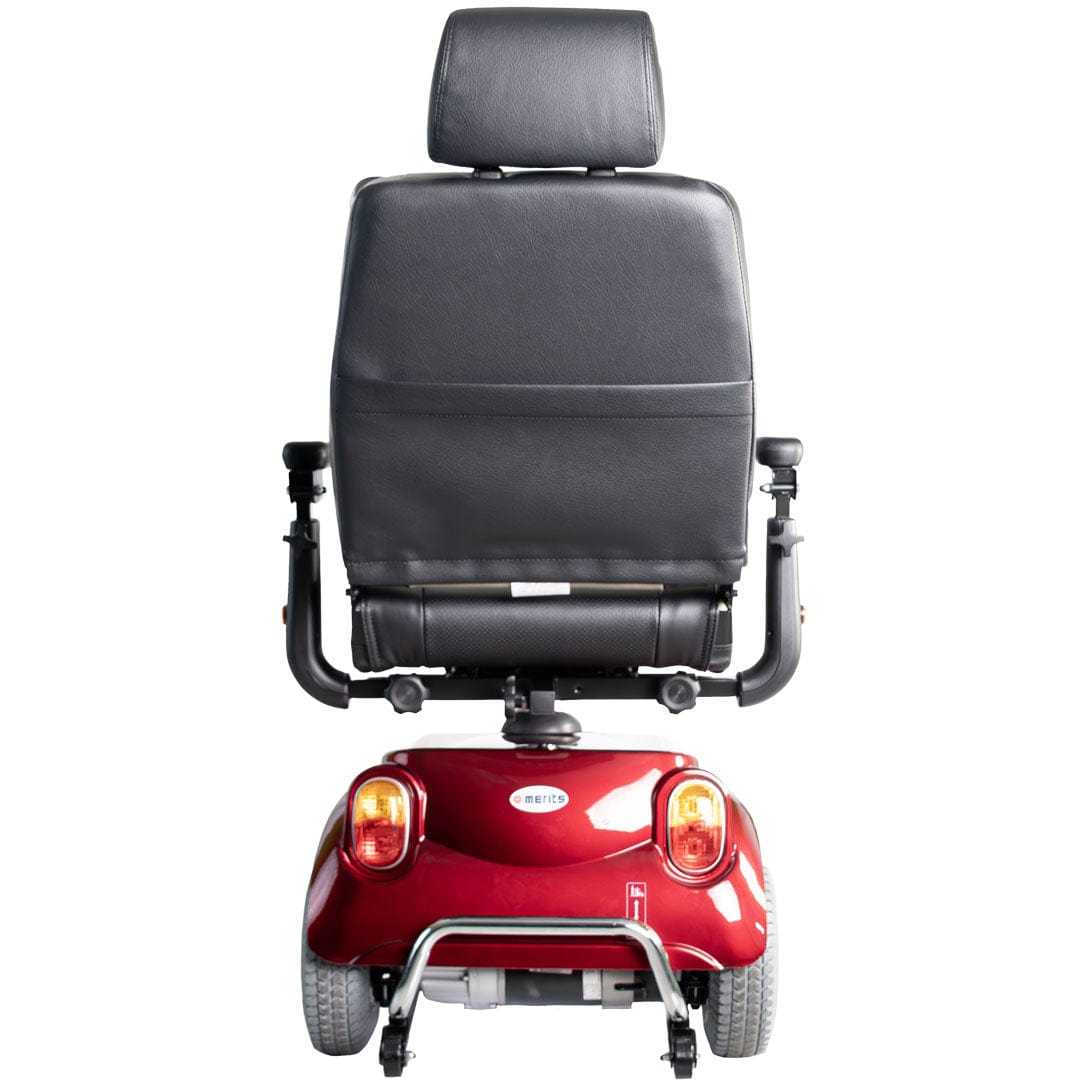

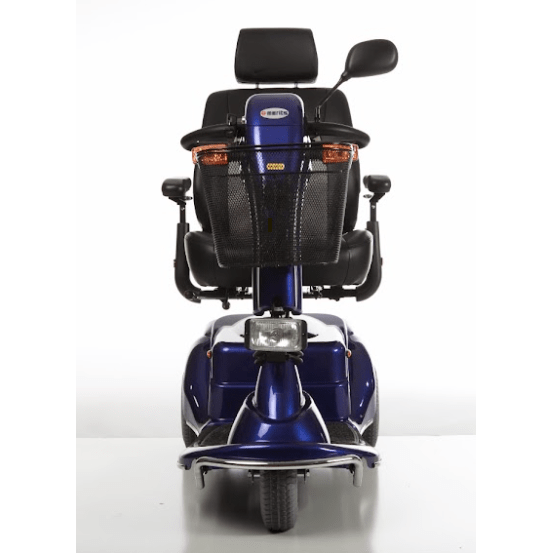

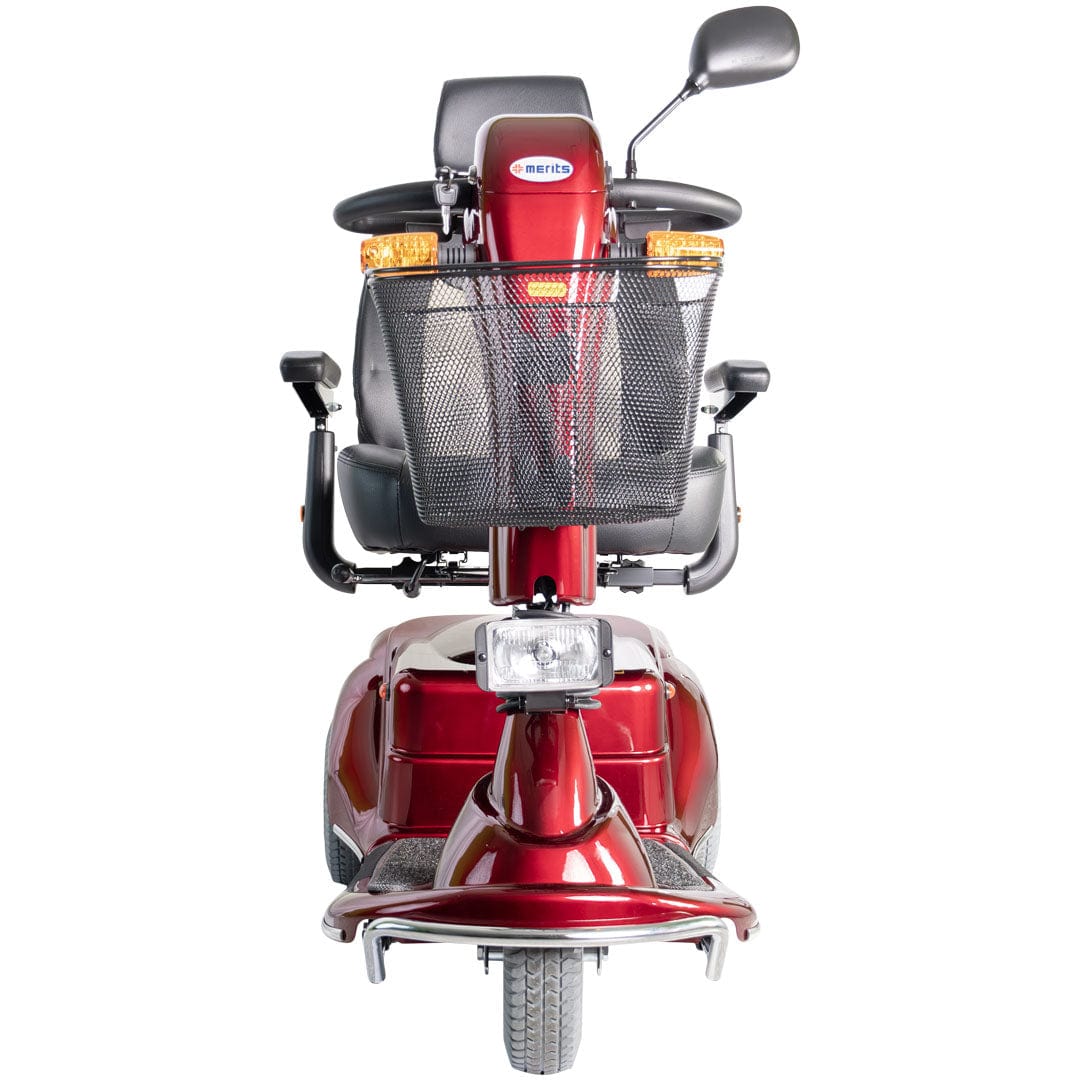

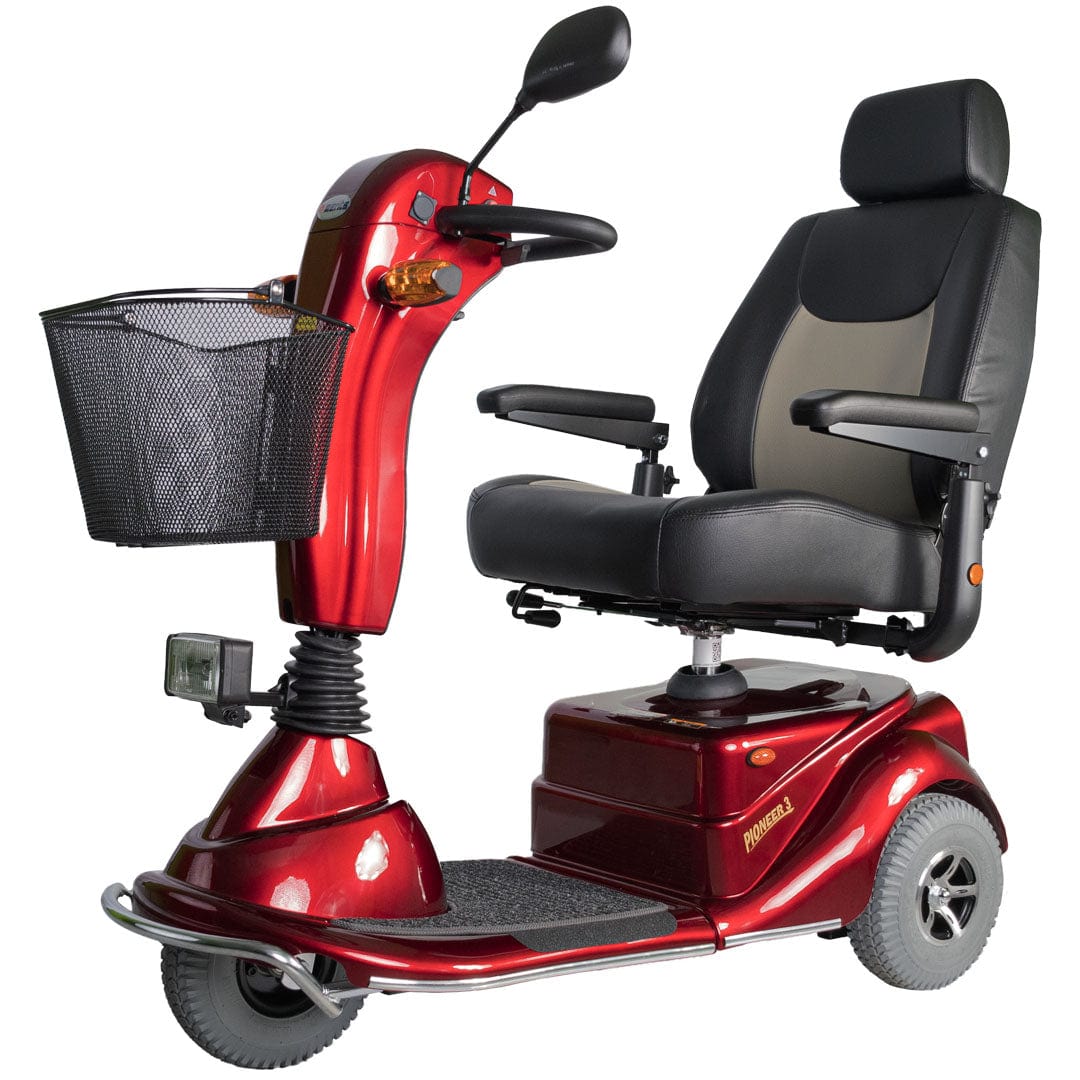

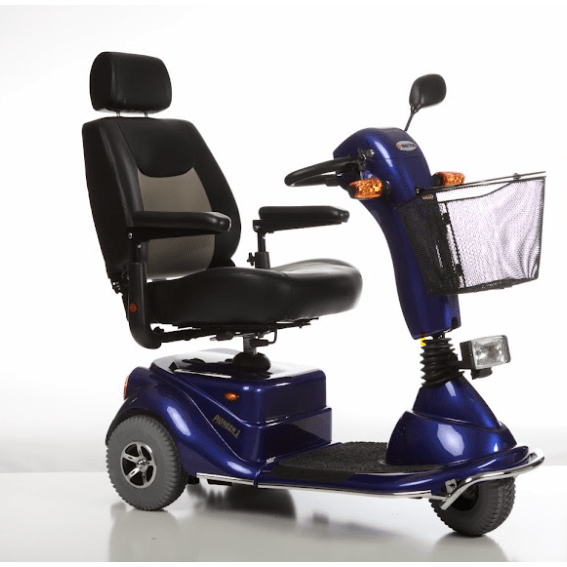

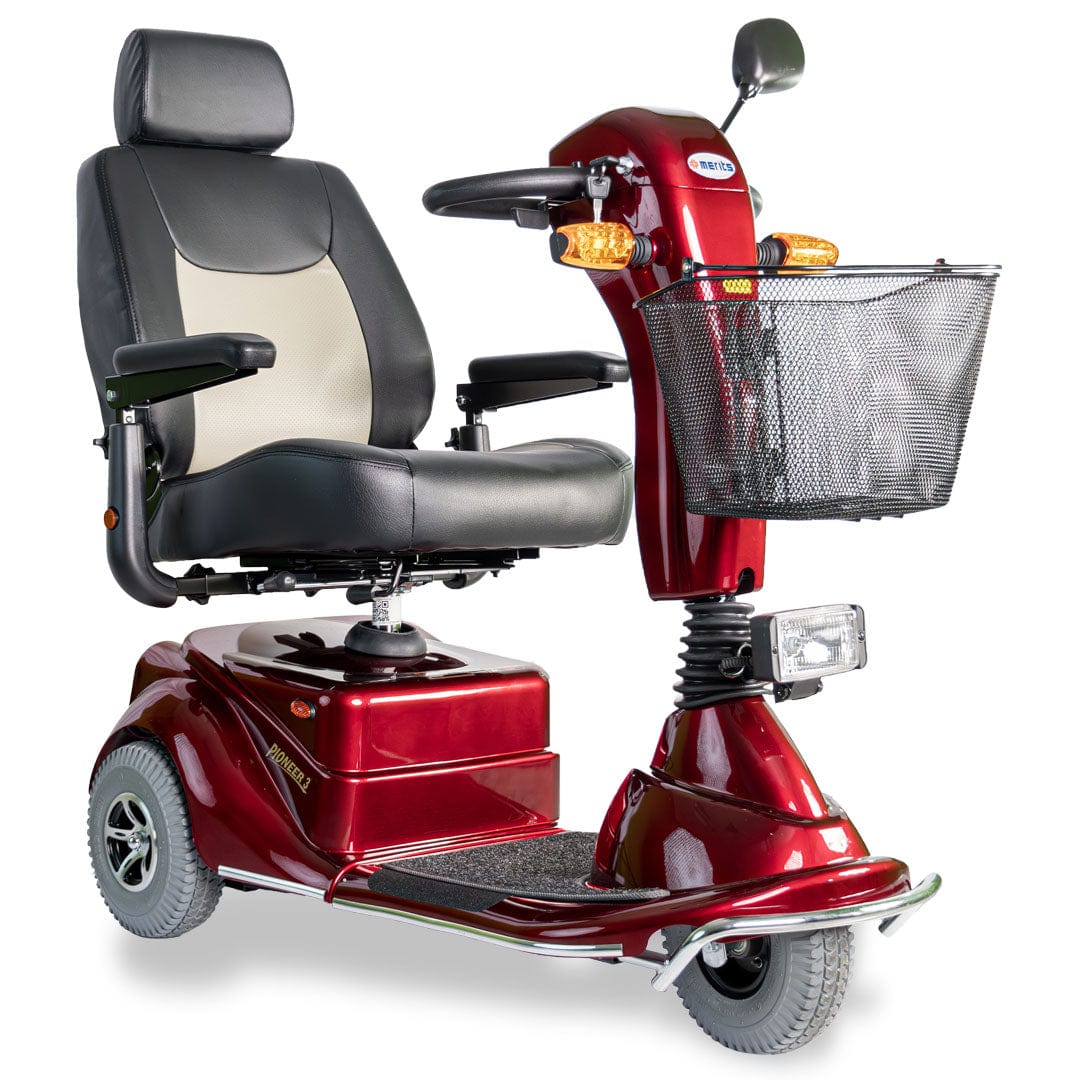

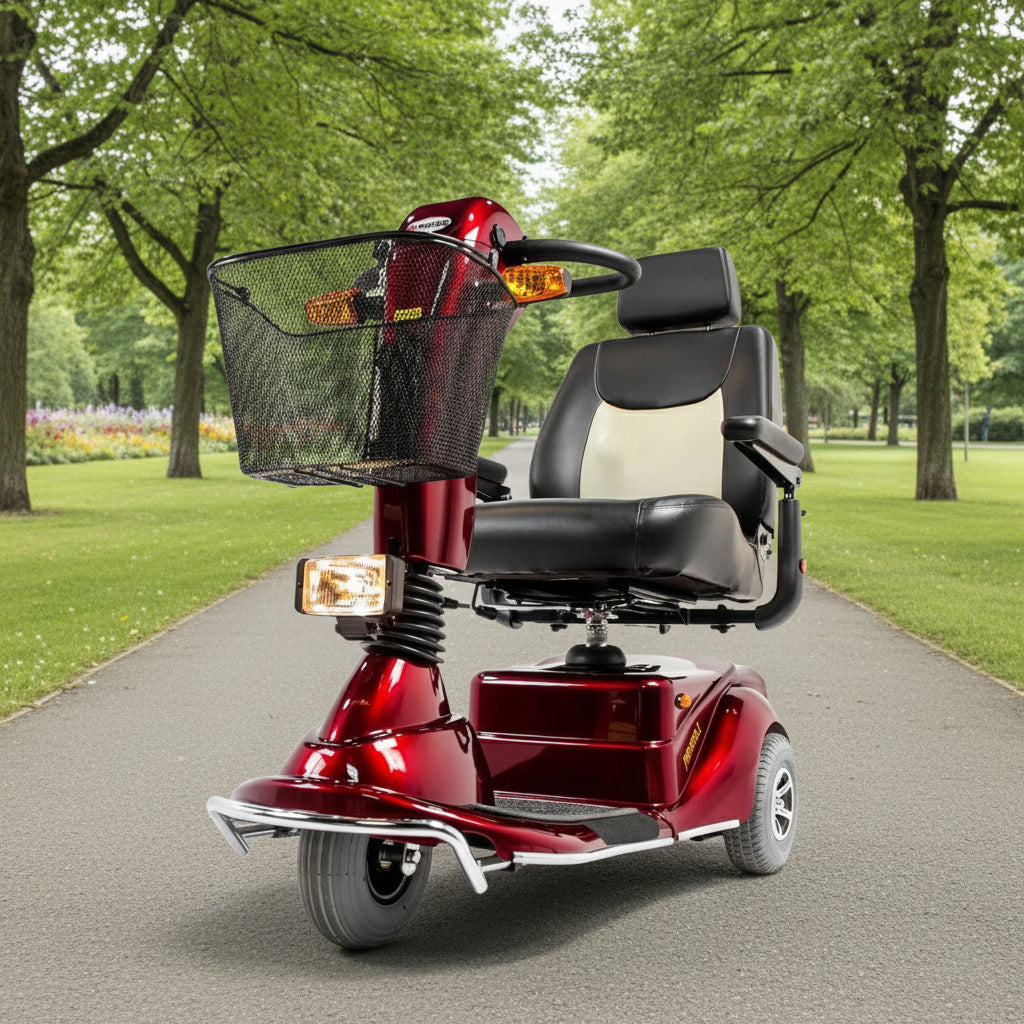

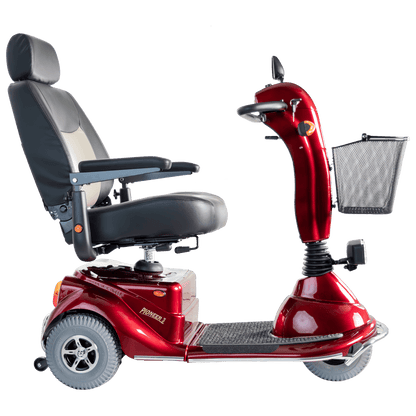

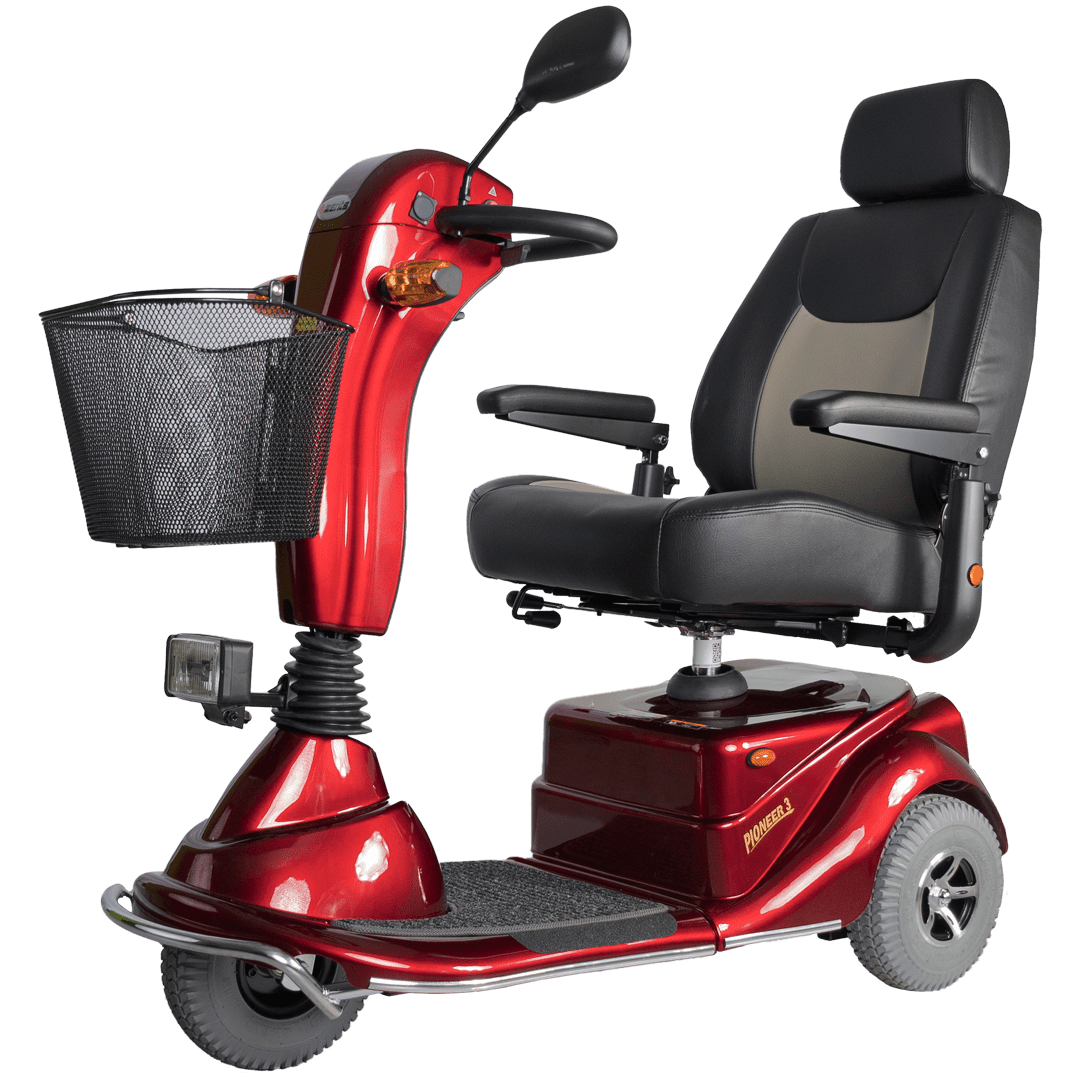

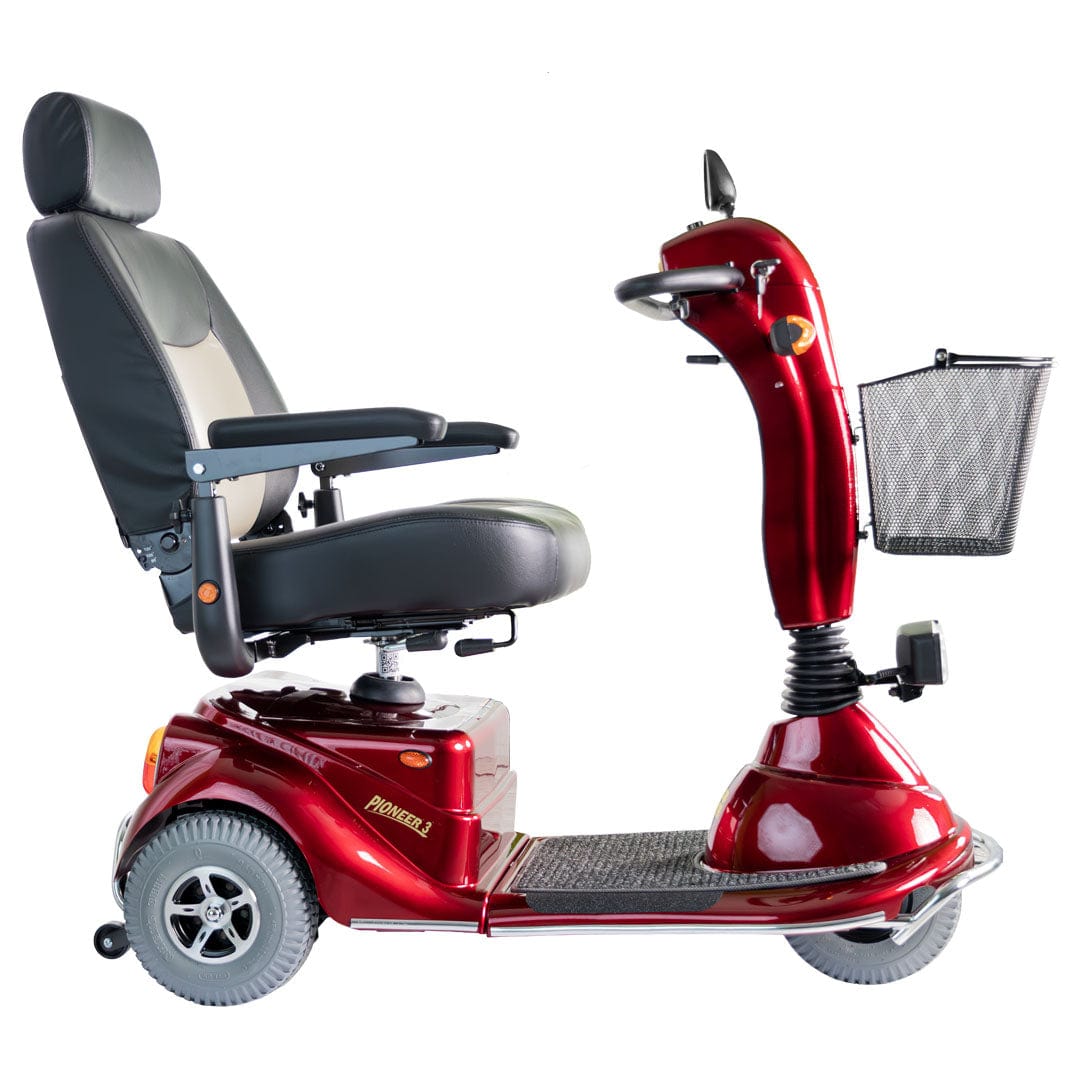

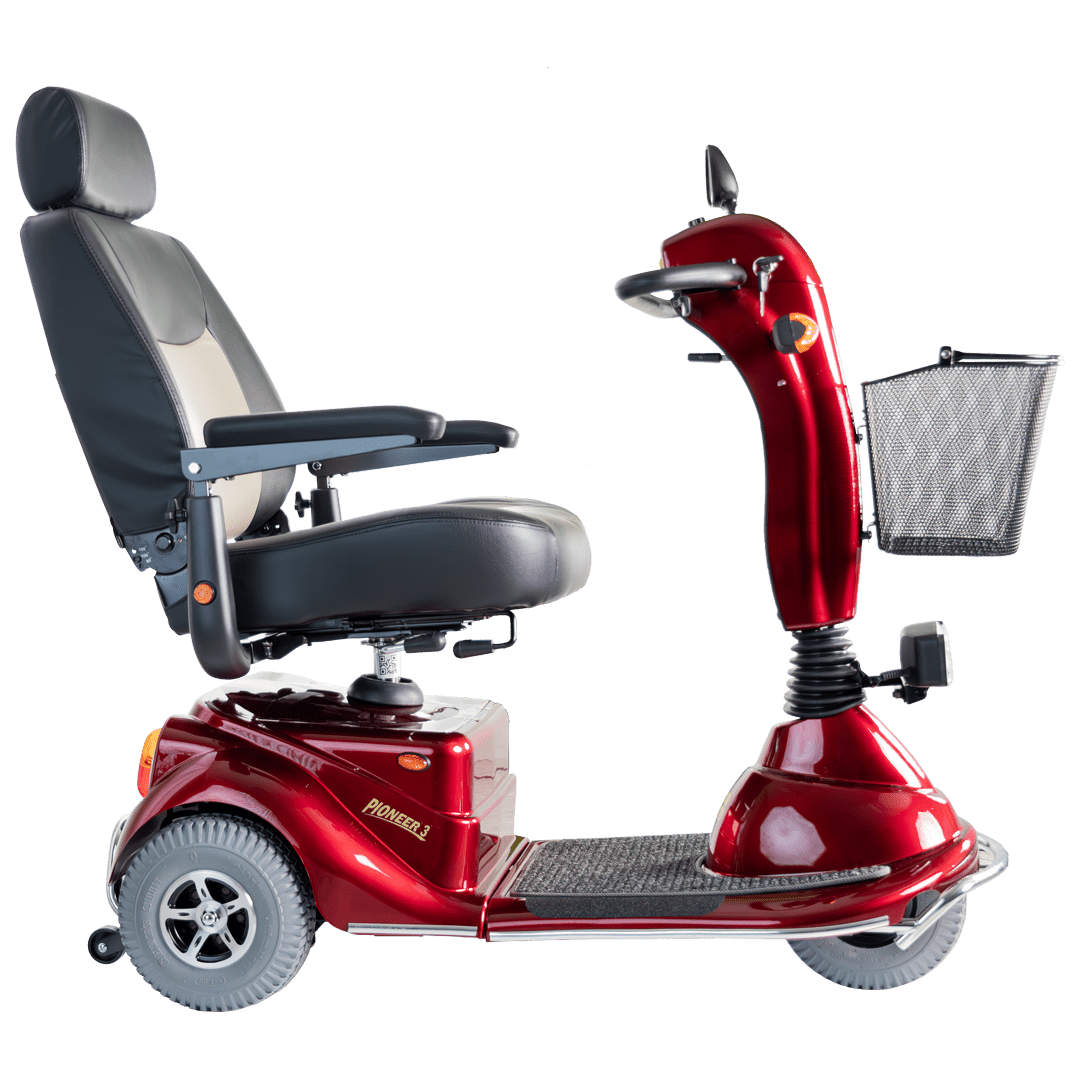

Merits Health Pioneer 3 Mobility Scooter 3-Wheel S131

Scooter Color
Shipping Options
Regular price $2,167.00 USD
Regular price $3,012.00 USD Sale price $2,167.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity
  • Free Shipping
  • Secure Checkout
  • Expert Support

About the Merits Pioneer 3

The Merits Pioneer 3 Mobility Scooter is one of our customer's favorites. The 3 wheel design allows more maneuverability, reducing the turn radius. At the same time, the Pioneer 3 also maintains the distance and power that you are looking for in this mid sized scooter.

Standard Features

  • 20″ W x 20″ D x 20″ H sliding captain seat
  • Weight Capacity: 400lbs
  • Three wheels provide a tighter turning radius for increased maneuverability
  • 4″ ground clearance
  • Headlight, tail lights, turn signals and hazard lights

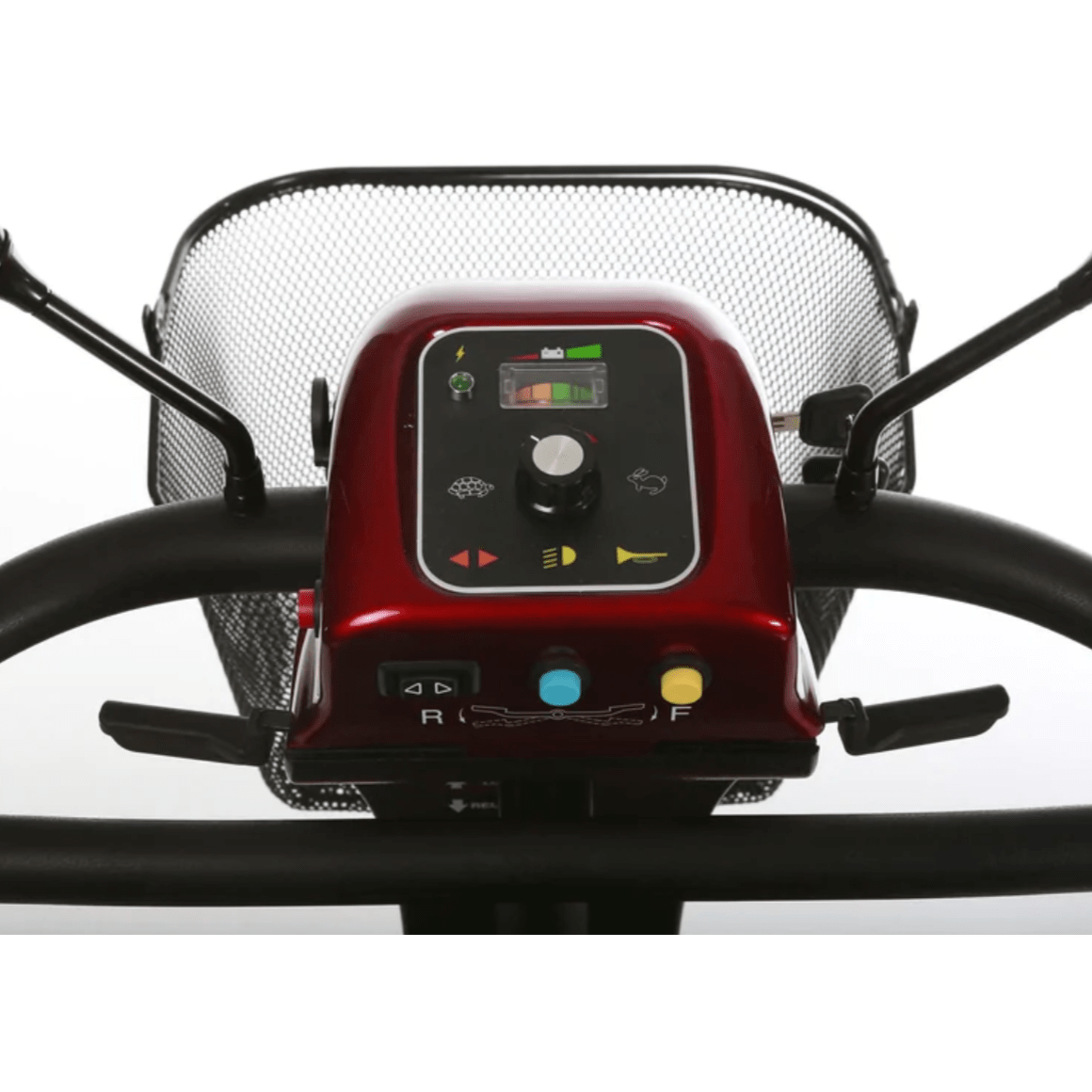

  • Hydraulic adjustable tiller

Technical Specs

Max Speed: 4mph/5mph/6mph

Range: Up to 18 miles

Turning Radius: 35″

Ground Clearance: 4″

Motor: DC 24V 250W

Controller: Dynamic Rhino 70A

Battery: 12V/22AH  x 2pcs

Charger: 5A off-board

Gradient: 10°

Casters: 9″ foam filled tires

Drive Wheels: 9″ foam filled tires

Brakes: intelligent, regenerative, electromagnetic

Dimensions

Seat Width: 20″

Seat Depth: 20″

Seat Height: 20″

Backrest Height: 20″

Overall Length: 44"

Overall Height: 34.5″

Overall Width: 23″

Warranty

Scooter Warranty - Lifetime Limited

Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this scooter (5 years).

For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Warranty exclusions: Plastic shrouds, tires, seating, upholstery/armpads, bulbs.

Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.

Resources

Owner's Manual
