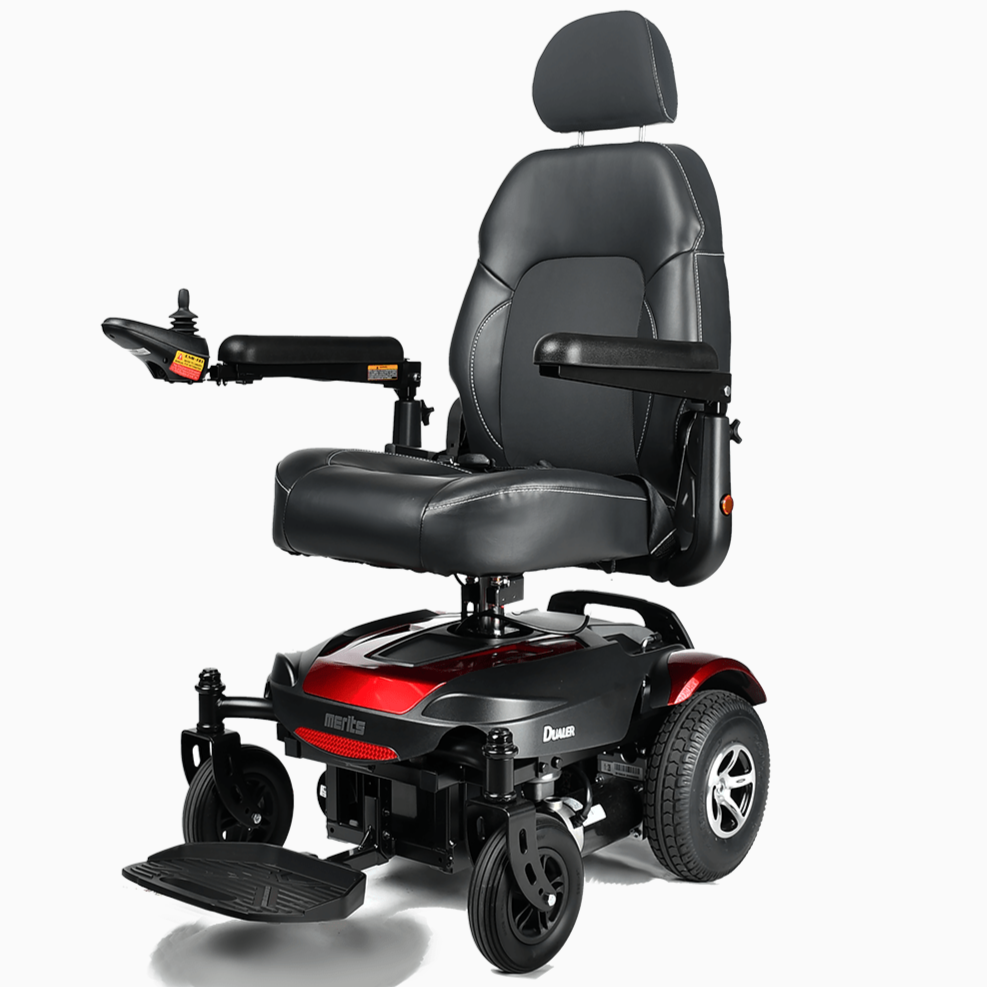

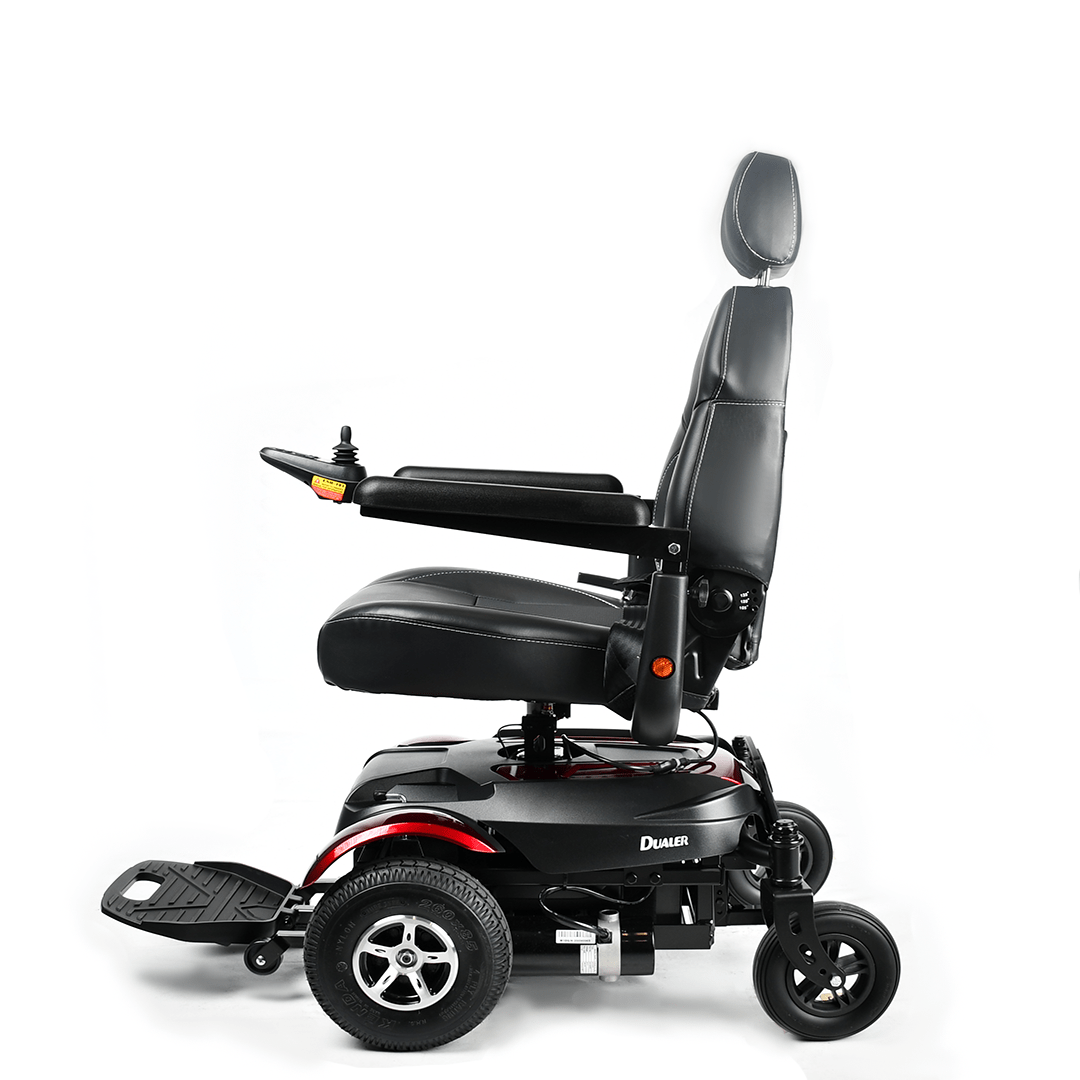

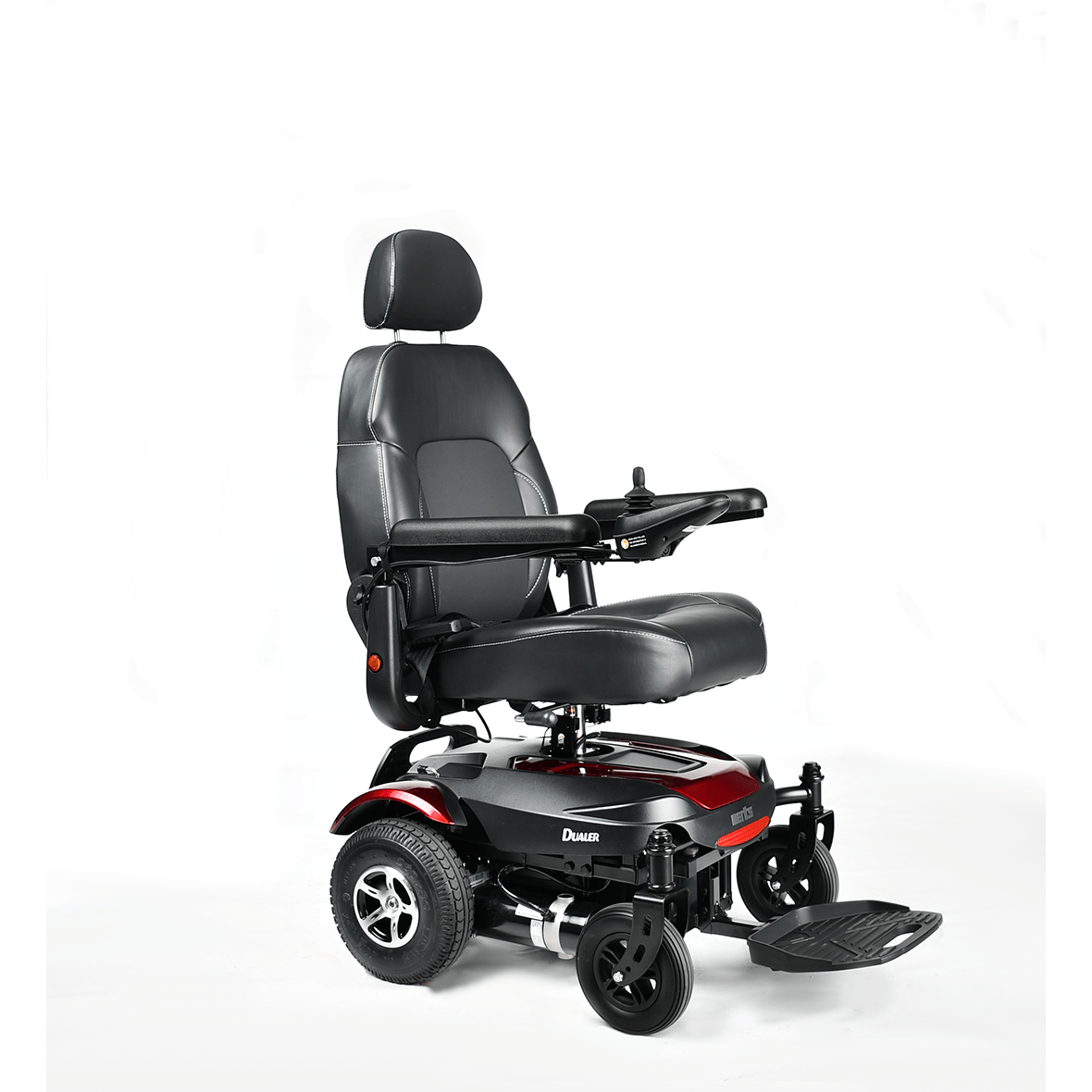

Merits Health Dualer Compact FWD/RWD Electric Power Wheelchair P312
Couldn't load pickup availability
About the Merits Dualer
The Merits Dualer Power Wheelchair is a versatile and innovative electric wheelchair that is perfect for users who need a chair that can adapt to their changing needs. The unique two-in-one power base rotates for front or rear-wheel drive, allowing the user to switch between the two depending on their needs. This feature makes it easier to navigate tight spaces and turns, and the chair's 10" foam-filled tires provide added stability while in motion. The plush seat has a low height of 22", making it easy to get on and off the chair, and the power-elevating seat feature is included at no extra charge. With a weight capacity of up to 300 lbs, the Merits Dualer Power Wheelchair is perfect for a wide range of users. The chair also comes with front riggings, including a bracket for a cup holder and side bag, and can be customized with additional accessories if needed. If you're looking for a versatile and reliable power wheelchair, the Merits Dualer Power Wheelchair is the one to go with.
Standard Features
- Unit changes from rear to front-wheel drive with the swivel of a seat
- 5-inch power seat lift
- 16,18 or 20-inch ergonomic semi-reclining seats; up to 135°

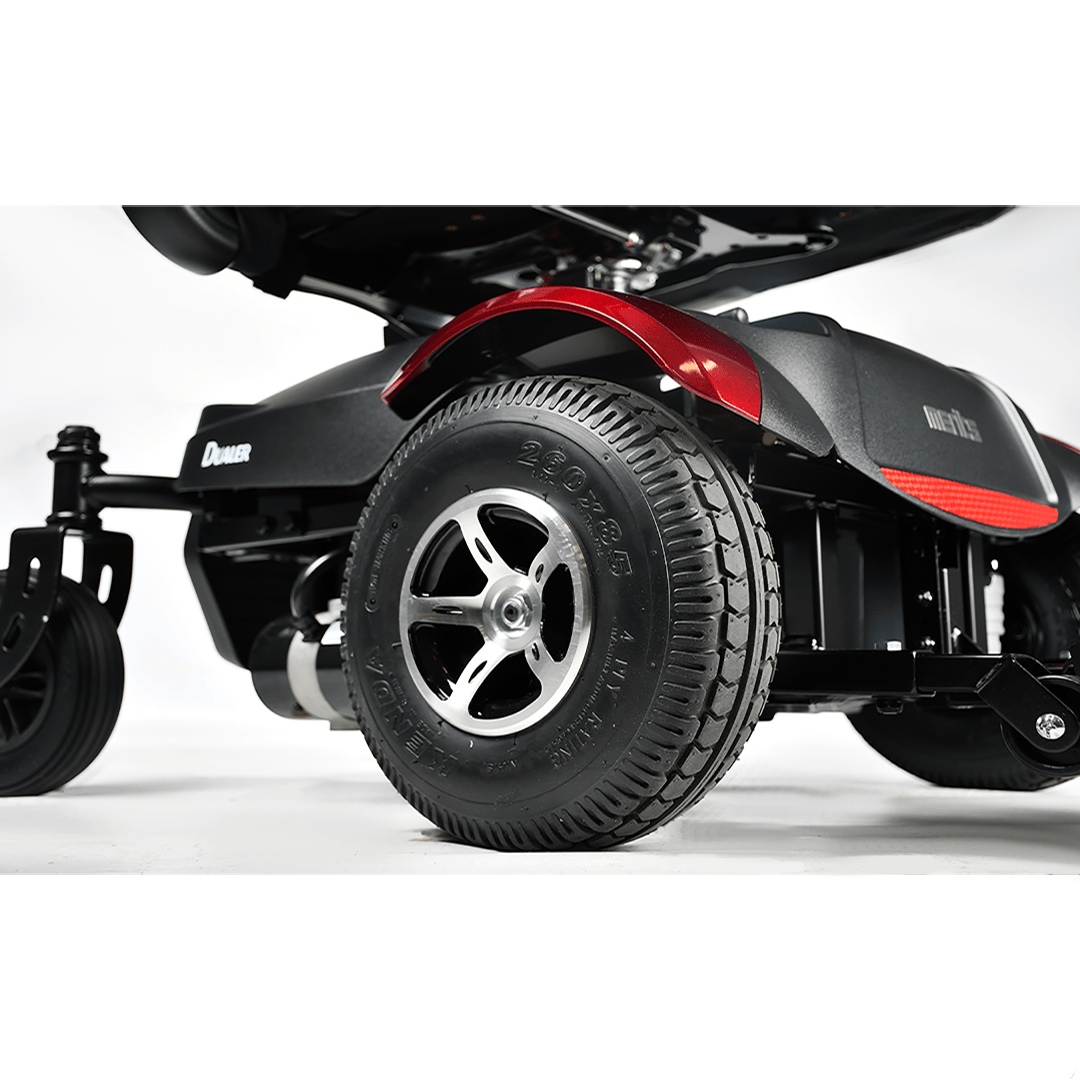

- 10-inch knobby drive tires for superior traction
- Dual footplates for comfort and convenience
Technical Specs
Max Speed: 5mph
Range: up to 18 miles
Turning Radius: 21″
Ground Clearance: 2″
Motor: DC 24V, 180W(rating)/ 630W(Max)
Battery: 12V/U1 x 2pcs
Charger: 5A off-board
Gradient: 12°
Casters: 8″ (200×50) PU tires
Drive Wheels: 10″(260×85) foam filled tires
Brakes: intelligent, regenerative, electromagnetic
Dimensions
Seat Width: 16″,18″,20″
Seat Depth: 16″-18″
Seat Height: 23″-24″
Backrest Height: 20″
Overall Length: 35.4″
Overall Height: 48″
Overall Width: 24″
Total Weight: 273 lbs
Weight Capacity: 300 lbs
Warranty
Power Chair Warranty – Lifetime Limited
Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).
For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.
Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.
Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
